Ck6140 CNC Machine Tool CNC Parallel CNC Turning Lathe Price Tools in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 24 Hour Online Technical Support
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Movement method
- Point to Point Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- Economical CNC Machine Tools
- Certification
- CE, ISO 9001
- Main motor power
- 7.5kw(Optional)
- Net weight
- 1700kg
- Precision
- High Precision
- Spindle nose
- A2-6
- Spindle type
- Mt5
- Accurate positioning
- ≤0.01mm/≤0.015mm
- Repeatitive positioning
- ≤0.0075mm/≤0.010mm
- Tool
- 4 Station Electric Tool Post
- Tailstock
- 65-150mm
- Transport package
- Seaworthy Packing
- Specification
- 2200*1400*1700mm
- Hs code
- 8458110000
- Production capacity
- 1500 Sets/Year
- Category
- CNC Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 104085352
Description
Product Parameters

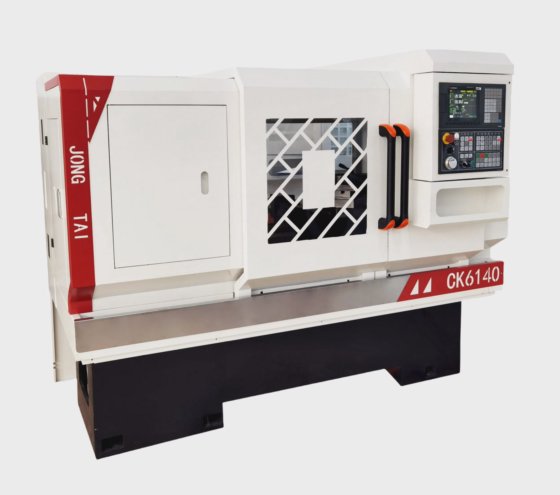

Model 6140 CNC Lathe - Reliable and Versatile Turning Solution
The 6140 CNC Lathe is a precision-engineered horizontal lathe designed for heavy-duty turning applications. With its robust structure and high torque capacity, the 6140 is widely used in metalworking industries for machining various types of cylindrical parts.
Key Features:
Swing over bed
: 400mm, suitable for medium-sized components
Distance between centers
: up to 1000mm, ideal for shaft-type parts
High-rigidity cast iron bed
ensures stability and vibration damping

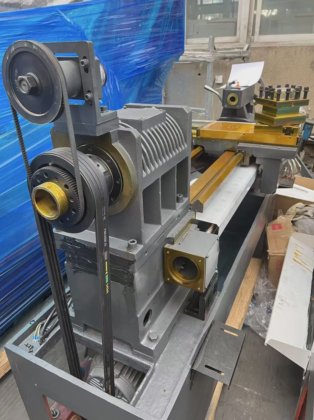

Gearbox-driven spindle
for high torque and smooth cutting
Optional 3-jaw or 4-jaw chuck
, steady rest, follow rest available
Compatible with manual or CNC control system (optional GSK, FANUC, Siemens)
Applications:
The 6140 lathe is suitable for turning, facing, threading, boring, and taper machining of steel, cast iron, and non-ferrous materials.
