T32 CNC Lathe Machine Tool Boring Machine for Valve Seats in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 1 Year
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Movement method
- Point to Point Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- Economical CNC Machine Tools
- Certification
- CE
- Maximum swing over bed
- 380mm
- Maximum workpiece length
- 400/500mm
- Maximum swing over saddle
- 130mm
- Spindle speed range
- 50-3000rpm
- Spindle bore diameter
- 48mm
- Spindle nose type
- A2-5
- Chuck size
- Spring Collet
- Clamping method
- Hydraulic Clamping
- X-axis travel
- 680mm
- Z-axis travel
- 400/500mm
- X/z-axis rapid traverse speed
- 24/24m/Min
- Tool post type
- Gang Tool Post
- Transport package
- Seaworthy Packing
- Specification
- 1900*1500*1680mm
- Hs code
- 84589100
- Production capacity
- 1500sets/Year
- Category
- CNC Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Cnc cutting machine
- Subcategory 4
- Manufacturing & processing machinery
- Listing ID
- 104086769
Description

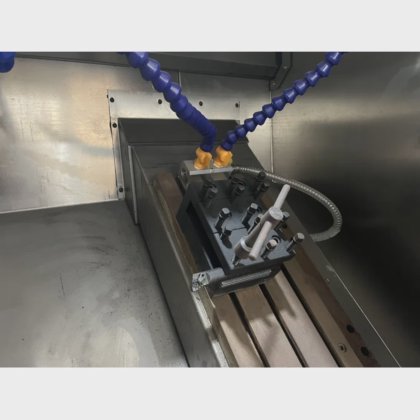

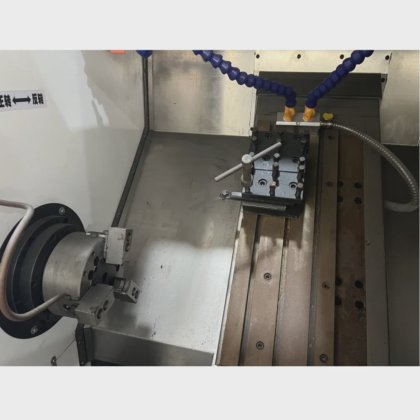

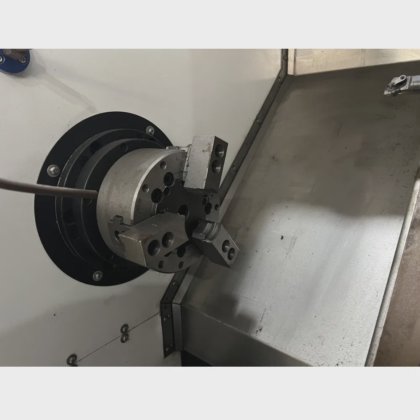

Actual machine photo
Product Parameters
T32 Gang-Type CNC Lathe - Compact, Precise, and Efficient
The T32 CNC lathe is a compact gang-type turning solution designed for precision machining of small to medium-sized parts. With a maximum swing over bed of 380mm and a workpiece length capacity of 400/500mm, this machine offers both flexibility and performance for a wide range of turning applications.
Equipped with a high-speed spindle ranging from 50 to 3000rpm and a 48mm spindle bore (A2-5 nose), the T32 features a spring collet chuck and hydraulic clamping for quick and stable part holding. Linear guideways and quality ball screws ensure smooth and accurate feed movements, with X/Z rapid traverse speeds of 24m/min.
The machine is configured with a gang tool post supporting up to 4 tools (20×20mm), ideal for fast tool changes and optimized cycle times. Powered by a 4kW servo spindle motor, the T32 delivers reliable performance while maintaining energy efficiency.
