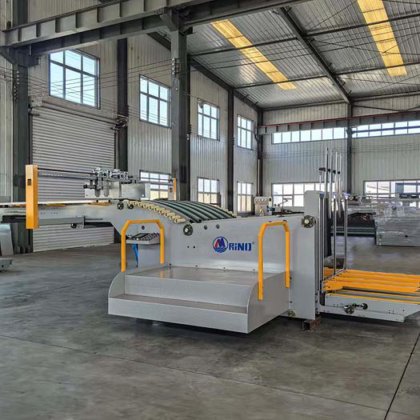

Hydraulic Semi-automatic Paper Pre-feeder Machine Connecting the printing presses in Guadalajara, Jalisco, Mexico
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Year
- 2025
- Serial number
- 20250606900
- Stock number
- 1
- Maximum cardboard size
- 1400 X2800 mm
- Minimum cardboard size
- 400 X600 mm
- Cardboard stacking height
- 1800 mm
- Maximum stacking weight
- 2000 Kg
- Cardboard lifting method
- hydraulic lifting
- Fork flipping power
- hydraulic drive
- Horizontal conveyor bed lifting power
- hydraulic drive
- Conveyor belt power
- hydraulic motor
- Category
- Packaging Machinery in Mexico
- Subcategory
- Packaging & printing
- Listing ID
- 104571791
Description
Features:
1. Fully automatic operation: from receiving the incoming paper stack-->paper stack rising-->turning-->stretching into fish scales-->centering and aligning-->transporting to the front edge bin of the printing press-->waste paper discharged from the bottom; the entire working process is fully automatic and does not require manual intervention.
2. Automatic adjustment: the input cardboard size can be automatically adjusted to the right position, and can also be adjusted in conjunction with printing.
3. Human-machine interface: PLC and control system electrical appliances are all international brands, and the hydraulic system and pneumatic system are also international brands.
4. Whole stack flipping: The whole stack cardboard flipping design is adopted, which can easily follow the working speed of the printing press of 400 sheets/minute.
5. No damage to the face paper: The design without front gauge does not scratch the paper surface, which is more suitable for white board face paper and poor material cardboard.
6. Suitable for small cardboard: More suitable for small cardboard from the smallest cardboard 250×600mm to 1400×2800mm / 1600x2800mm.
7. Simple and practical: easy to install, small footprint, low failure rate.
Services offered by seller
This seller offers new machines
This seller offers transport & logistics
$48,000 USD
