Komptech MS ONE multistar in Beauvechain, Wallonia, Belgium
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 061
- Category
- Recycling & Disposal in Belgium
- Subcategory
- Starscreener
- Subcategory 2
- Crushing and screening equipement
- Listing ID
- 104765330
Description
Two-fraction star screen GÜNTHER MULTISTAR ONE / MS ONE
Used, year of construction 2003
Approx. 2657 operating hours
Mobile star screen for screening waste wood, biomass, green waste and other screenable materials in 2-fractions as well as for overlength recycling
- Input material: specific weight 200 - 650 kg/m³ / moisture max. 55% / piece size and individual weight max. 1000 mm and 20 kg / material feed with conveyor belt or wheel loader / throughput capacity up to 200 m³/h

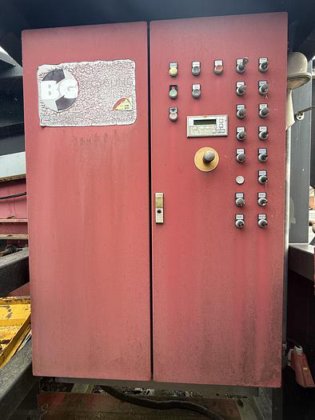

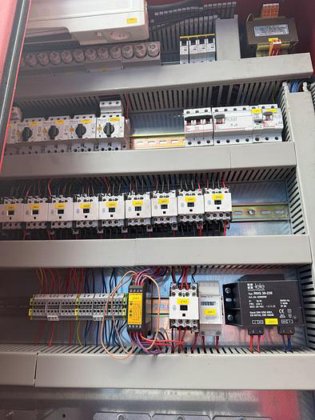

- Control, operation, switch cabinet: Type PLC / Operation display, control panel / Manual or automatic operating mode / Power supply AC 400 V, 3P, 50Hz via 32A plug on site
- System interlinking: 16-pin plug connection / Cable (15 m) incl. winding device on base frame / Screen deck overrun for EMERGENCY STOP / Dummy plug in control cabinet door
- Feed hopper: Capacity approx. 2.5 m³ / Feed height 2500 - 3000 mm / Free throw-in length 2300 mm / Conveying medium scraper chain conveyor with maintenance-free flat link chain / Drive 2.2 kW adjustable via frequency inverter
Gsbqowhy T Tjzpc Diouc
- Collecting belt: Center distance 4600 mm / Belt width 1000 mm / Belt type smooth / motor 2.2 kW, v=1.2 m/s
- Connect: Connect! is the innovative telematics solution from Komptech / overview of operating status, error messages, statistics, GPS localization, capacity utilization
- Petrol-powered hydraulic pump
- HyDrive System 2.0 MS ONE

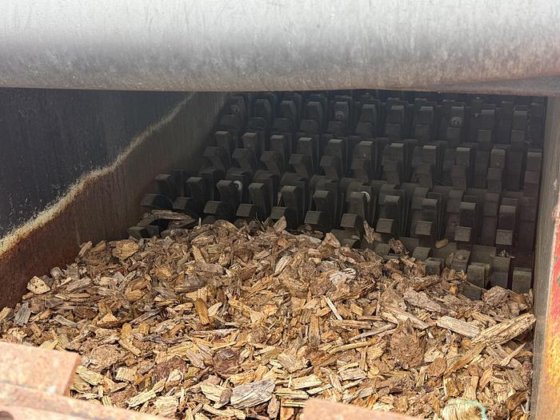

- Screen deck , Output: 0-40 mm / Length 4500 mm / Width 1450 mm / Screen area 6.5 m² / Position 11° incline / Star shafts 17 pieces / Star diameter 340 mm / Star width 40 mm / Center distance 266.5 mm / Cleanstar cleaning elements / motor 2 x 4 kW / Adjustable via frequency inverter

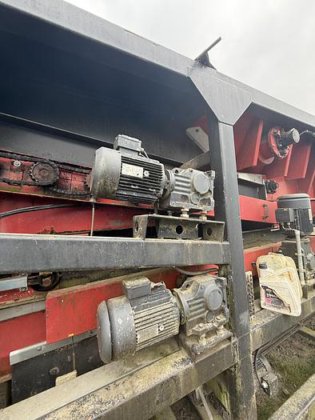

- Drive motors 50 Hz: motors for driving the screen deck / 2x 4 kW 50 Hz
- Dosing roller: width 1560 mm / diameter 215 mm / drive 3 kW drum motor
- FKAB with magnetic drum: Center distance 6200 mm / Belt width 1000 mm / Installation position 30° inclined / Belt type profiled, 15 mm chevron / 3.0 kW motor, v=2.2 m/s / Usable discharge height 3500 mm - 3950 mm / Multi-pole magnetic drum in permanent version / incl. discharge chute
- Over-grain discharge conveyor: Center distance 6200 mm / Belt width 1000 mm / Installation position 30° inclined, 220° pivoting / Belt type profiled, 15 mm chevron / motor 3.0 kW, v=2.2 m/s / Usable discharge height 3600 mm - 4050 mm
Transport dimensions approx. 8176 x 2466 x 2600 mm LWH
Weight approx. 9200 kg
