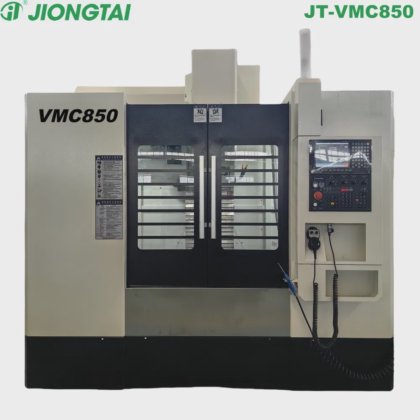

Vmc850 Servo-Driven Atc for Quick Tool Change CNC Machining Center in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 1 Year
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Movement method
- Point to Point Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- High-End CNC Machine Tools
- Certification
- CE, ISO 9001
- Precision
- High Precision
- Net weight
- 5000kg
- Standard system
- Fanuc
- Optional system
- GSK/Fanuc/Siemens/Mitsubishi/Syntec/Knd/Kt
- Worktable size (l * w)
- 1000*500mm
- T-slot (quantity * width * pitch)
- 5*18*90mm
- Travel (x/y/z axes)
- 800*500*550
- Distance from spindle nose to worktable
- 130-630mm
- Spindle power
- 7.5/11kw
- Rapid traverse speed (x/y/z)
- 36/36/24m/Min
- X/y/z axis ball screw
- 4016/4016/4016
- Transport package
- Seaworthy Packing
- Specification
- 2700*2260*2400mm
- Hs code
- 8458110000
- Production capacity
- 1500sets/Year
- Category
- Machining Centers in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 104804604
Description

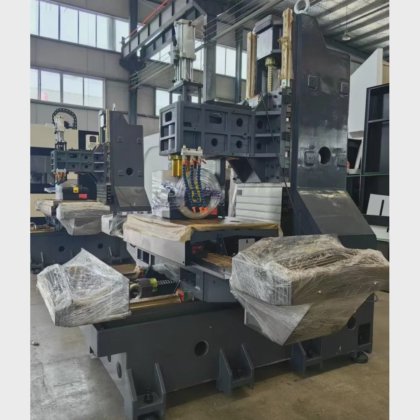

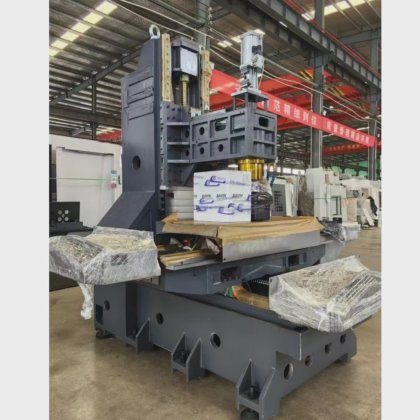

Actual machine photo
Product Parameters
1. Product Features
The VMC85
0
vertical machining center utilizes roller linear guides for the three axes, with a six-block design for the Z-axis, ensuring fast stability, low load, and high precision typical of linear guide machines.
The resin sand castings undergo electric furnace tempering, rough machining followed by vibration aging treatment, and two rounds of manual aging to eliminate stress, ensuring the machine maintains high precision requirements and longevity.

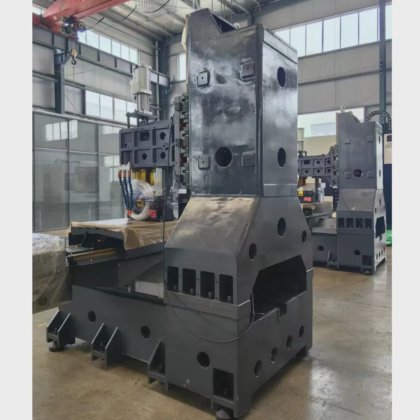

The slanted column greatly enhances overall rigidity, combined with a multi-ribbed widened spindle box, and the six-block roller linear guide design for the Z-axis, ensuring machining stability and precision.
The base features an oil-water separation structure and a fully sealed internal protection design.
