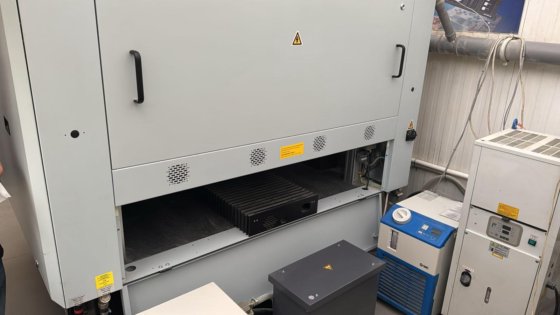

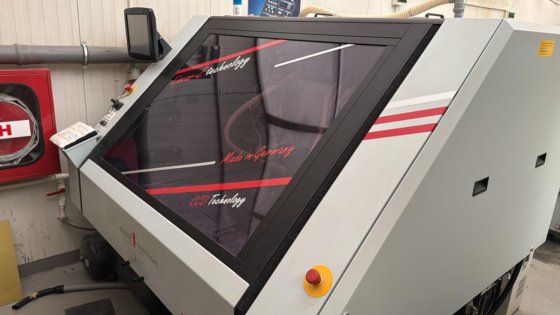

Schmoll LM2 - 2 spindle routing and drilling system with CCD camera in Rödermark, Hesse, Germany
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- First installation
- January 2023
- Category
- PCB Assembly in Germany
- Subcategory
- Pcb machines
- Listing ID
- 105079872
Description
High-end machine for small batches
Condition
Only
781 production hours
Panel size
656 mm x 714 mm / 25.8″ x 28.1″
Motor technology
Linear motor technology in XYZ
90 m/min in XY
25 m/min in Z / Z-axis stroke 30 mm
Linear Z-motor for depth controlled applications (drilling and routing)

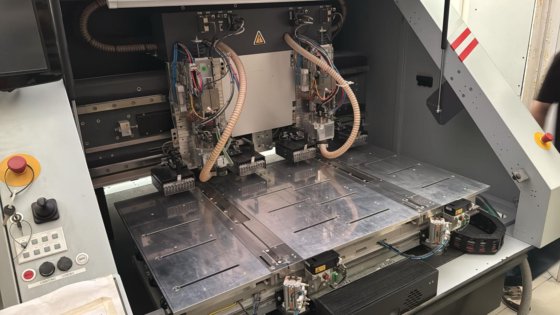

Spindle technology
Multiple drilling and routing spindles can be used
Routing/Drilling spindles D1331-26/36 installed
20000 - 125000 rpm
Standard routing pressure foot
Tooling system
Prism slot system, pin diameter 3 - 5 mm
2×110 ringed or ringless Euro Tool Cassettes
Features
CCD camera for outer layer registration at one station
Broken bit detection
Laser station for bit measurement
Software
Linux based S50
