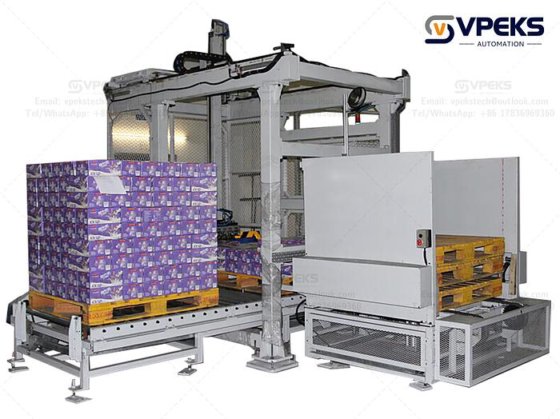

High Level Push Type 1000 bags/hour Palletizing Machine for Cases, Bags, Cartons, CANS, Bottles, Barrel Stacking in California, USA

Proper pallet size: L1000~1200*W1000~1200mm

Palletizing height: 1300~1500mm（could be customized)

Air Consumption: 6-7 kg

Applicable place: Fertilizer, feed, flour, rice, plastic pellets, seeds, washing powder, cement, dry powder mortar, talc powder, slag aggregating agent, etc.

After-sales Service Provided: Video technical support, Field installation, commissioning and training, Online support, Field maintenance and repair service, Free spare parts.

Warranty: 1 Year

High-level palletizer

The high-level push-type palletizer is particularly suited for achieving high speeds with stable bags that have a well-defined shape. It is made of a high-level rigid case palletizer with a vertical frame: we will explain this in the paragraph below its function.

The fact that different operations are performed simultaneously means the machine can reach high production capacities that otherwise would be impossible to achieve.

How a high-level palletizer is made and how it works

The machine is composed of a rigid high-level case palletizer with a vertical frame sliding on it and this holds the pallet being formed. The full bags coming from the filling line are raised to an orienting device.

Following the programmed palletizing pattern, the bags are initially arranged on the row-formation roller conveyor and then when a row is composed, it is shifted to a temporary parking area. When the last row completes the layer, a pusher shifts the entire layer over two sliding trapdoors that centrally unload the layer, which is then compacted on all four sides.

At this point, the doors open and unload the just-formed layer onto the pallet being made, and the frame that holds it is lowered by the thickness of one layer. The cycle begins again until the pallet has been completed, at which point the frame descends to the level of the evacuation roller conveyor.

Through this roller conveyor, the pallet is ejected and sent to the parking roller conveyor. At the same time, a new empty pallet will have reached the mobile frame, which is raised to the height of the trapdoors to receive the first layer that has been prepared and start the new cycle.

VPEKS high-level palletizer: easy to perform

The use of a PLC operating system and the presence of special actuators make the procedures to change the format or program extremely fast and easy to perform. Different palletizing patterns can be memorized in the PLC for easy execution.

The high-level palletizer comes complete with a treading platform to access the elevated parts of the machine, an empty-pallet magazine, an evacuation roller conveyor, and a full-pallet parking roller conveyor.

The high-level push-type palletizer comes complete with safety devices compliant with current international standards.

On VPEKS’s assistance with high-level palletizers

Digital Help Care Il nuovo supporto multicanale Check consente la risoluzione rapida di tutte le problematiche dei clienti, attraverso un portale web, ticket assistenza personalizzati, FAQ, e assistenza in mobilità attraverso la app per smartphone “VPEKS Check”. La app consente di sfruttare video, chat, sms per scambiare informazioni e ricevere assistenza immediata.

Hotline VPEKS offers specialized support from a team of technicians for high-level palletizers remote assistance. 84 % of issues are solved remotely or through the teleservice connection with the plant.

On-site If necessary, VPEKS will send its technicians directly on-site for a rapid resolution of problems that cannot be solved remotely. Plus, we have a team for technical maintenance of your high-level palletizer.

Training After installation on site, we provide your team with all the necessary training to solve any issues related to the high-level palletizer.

FAQ

Q: How to choose a proper automatic palletizing machine?

Please tell us the pallet size, and target output( bags/hour). We will recommend the most suitable model to you.

Q: How do I get a personalized quotation?

Please provide your specific requirements such as product type, power type, and any customization needs. Our sales team will then prepare a detailed and tailored quotation.

Q: How long does it usually take to receive the equipment?

The production time of different machines ranges from 10 days to 30 working days.

As for shipping issues, there are different shipping ways for options. For most countries, we could help clients to do Door to Door shipping service. Air shipping is fast but expensive, it’s a good choice for urgent orders, it only takes 7-10 days max. Sea shipping is the most economical shipping way, depending on different destination seaports, the shipping times range from 15 to 45 days.

Q: How is the equipment packaged for shipping?

We use sturdy wooden crates or customized packaging to ensure safe delivery by sea or air freight, protecting your equipment from damage during transit.

Q: What are your terms of payment?

Payment<= 5000 USD, 100% in advance. Payment>= 5000 USD, 30% T/T in advance, balance before shipment.

Q: What’s the guarantee of the machine?

We have a 1-year guarantee for all the machines. If any components are broken during 1 year, we will send replacements to clients for free by express. And we will take videos to teach you how to replace it. Also, we have several service centers in different countries. We offer lifetime technical support. Since we adopt international components, clients can easily source spare parts from local after 1 year.

Q: How will my machines be installed if necessary? How long does the installation take?

We’ll dispatch an engineer to your facility, help to install the machine, and train your staff on how to operate it. The customer pays for round-trip airfare, accommodation, and USD150/day/person.

Depending on the machines you ordered, it will take about 7 to 30 days.

Q: Do you have any references?

We have customer success cases in most countries. Suppose we get permission from a customer who imports a machine from us.

Q: What’s the main difference in machines between VPEKS Automation and other manufacturers?

（1）The basic manufacturing principle of VPEKS is to use international brand components as much as possible. Almost 95% to 100% components of are made by OMRON>, SIEMENS>, ABB>, Schnieder>, AirTAC>, NSK>, etc. to maintain good quality.

（2）In product design and program design, we adhere to the principles of simplicity and ease of use. After all, the purpose of automation is to save labor costs not to create operation costs.

Q: Do you have certificates?

We have been certified by reputable certification bodies.

Q: How do I test the machine before shipping?

Once the machine is finished, we will run over 72 hours and send a test video to you. Of course, you can come in person or hire a third-party organization to inspect our factory.

Company Profile

Henan VPEKS Automation Co., Ltd is a packing and palletizing machinery manufacturer with over 15 years of experience. As a global integrator, VPEKS provides complete solutions for designing, producing, integrating, and servicing secondary packaging and palletizing systems. VPEKS combines advanced technologies, scalable material packing, innovative software, and custom automation engineering to deliver easy-to-use, comprehensive solutions.

Currently, our main products include complete packing lines and automatic palletizing lines, capable of handling various raw materials (powder, granules, lumps, liquid, pasty fluids) with final package weights ranging from 5g to 5000g, 5kg to 100kg, 100kg to 2Ton.

Below are the detailed main machinery made by VPEKS Automation:

(1)Automatic bag packing line (with automatic bag feeding and automatic bag sewing system/hot sealing system)

(2)Semi-automatic bag packing line(Need to feed bags manually)

(3)Automatic palletizing line for the bag, case, carton, barrel, etc(with robotic palletizer, vertical column palletizer, high-level palletizer or Coordinate palletizer)

(4)VFFS (Vertical fill form sealing) packing machine for powder, paste, liquid, or granule

(5)Flow pack wrapping machine

(6)Automatic liquid filling line(with automatic filler, capping machine, labeling machine, etc)

(7)Pre-made pouch bag packing machine

(8)Film wrapping machine

(9)Inner and outer tea bag packing machine

(10)Combined scale packing machine with automatic bag feeder
