Shimadzu Prominence Modular HPLC in Temecula, CA, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Number of flow lines
- 3
- Degassing performance
- UV absorption difference with and without degasser is over 300 mAU (using UV absorption detector, wavelength 210 nm, sensitivity 0.5 AU, flowing Methanol saturated with dissolved oxygen (HPLC grade) at 25°C with 1 ml/min)
- Operating flow rate
- 20 mL/min per flow line (using deionized water –applicable range varies depending on the solvent being delivered).
- Pressure resistance
- 98 kPa (1 kgf/cm2) or less Only when suctioning with the delivery unit. Pressurized delivery to the degasser is prohibited.)
- Internal capacity
- 380 µL per flow line
- Materials contacting solvents
- Special synthetic polymers designed for all solvents (degassing membrane), PEEK (connector joints)
- External output
- When system self-diagnostics detects an abnormality, a signal is output to the external terminal (ALARM)
- Self-cleaning
- Includes mechanism that extends vacuum pump life by drawing in air when the vacuum pump is running
- Tubing
- 3 mm O.D. x 1.5 mm I.D. PTFE tubing
- Dimensions
- 25″ W x 16.55 x 2.85″ H (26 x 42 x 7.2 cm)
- Weight
- 11 lbs. (5 kg)
- Operating conditions
- 4 – 35°C, 20 – 85% humidity
- Power supply
- +24 V (powered via connection by remote cable to delivery unit)
- Cooling method
- Electronic cooling
- Temperature-setting range
- 4°C to 85°C
- Storable devices
- 2 manual injectors, gradient mixer, 2 high-pressure flow-line selection valves, etc
- Temperature-control precision
- 1°C max.
- Temperature-control range
- 10°C below room temperature to 85°C
- Storage capacity
- 10 columns, max 25 cm length
- Time program
- Linear temperature program supported
- Safety measures
- Solvent sensor, temperature fuse, temperature upper limit
- Operating temperature range
- 4C to 35C
- Solvent delivery method
- Parallel-type
- Plunger capacity
- 10µL
- Maximum discharge pressure
- 40MPa
- Flow-rate setting range
- 0.0001 to 10.0000 mL/min.
- Pulsation
- 0.1 MPa (for water at 1.0 mL/min. and 7MPa)
- Constant-pressure solvent delivery
- Supported
- Dimensions, weight
- 260 (W) x 140 (H) x 420 (D) mm, 10 kg
- Power requirements
- 100 VAC, 150 VA, 50/60 Hz
- Category
- Chromatography in USA
- Subcategory
- Hplc/uflc
- Subcategory 2
- Analytical equipment
- Subcategory 3
- Clinical & analytical laboratory equipment
- Listing ID
- 105287643
Description

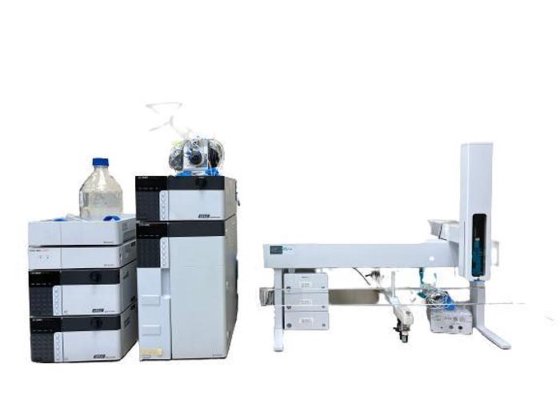

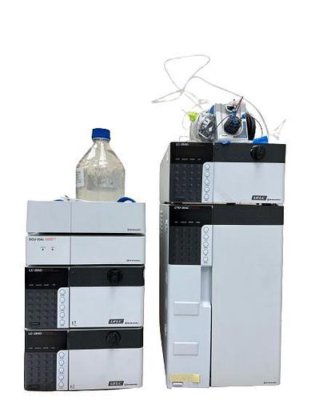

Shimadzu Prominence Modular HPLC
Includes:
- One DGU-20A3 Prominence Degasser
- One CTO-20AC Prominance Column Oven
- One PAL HTS-xt AutoSampler
- Three LC-20AD Prominence Liquid Chromatograph
- System Reservoir tray
- Pump
Features/Benefits
Prominence is a network-ready HPLC system that meets the demands of today’s advanced users. Prominence features the world’s first Web control, fastest sample injection, and highest detection sensitivity performance functions that surpass current HPLC technology. The Shimadzu prominence offers high speed injection times at only 10 seconds (for 10uL injection) per sample injection. This system offers Self Diagnosis (Expert Function), Validation, System control using a web browser, and is fully automated.
Specifications:
Shimadzu DGU-20A3 Prominence Degasser
Shimadzu CTO-20AC Prominence Column Oven
Shimadzu LC-20AD Prominence HPLC Pump

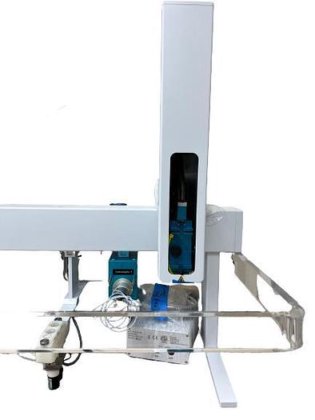

PAL HTS-xt AutoSampler
High-Throughput model in 80cm length
4-valve operation for parallel or staggered sample analysis
2- or 3-valve operation for multidimensional chromatography Upgradable with the PAL Dilutor module Precise and Accurate sample Loading for flexible analysis requirements and high throughput
Extended X-axis length of 120cm Injection onto FIA/MS, parallel HPLC or MUX Systems
Built for unattended 24 hour/day Mass Spec analysis Various accessories and options available
Precise and Accurate sample Loading for ultra high throughput environment
$23,497 USD
