PCB Loader and Unloader L Type in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Number of magazines
- Upper conveyor: 1 magazine; lower conveyor: 1 magazine
- Pcb feed time
- Approx. 6 seconds (or customer specified)
- Magazine replacement time
- Approx. 30 seconds (or customer specified)
- Indexing pitch
- 10, 20, 30, 40mm (or customer specified)
- Power supply
- AC 110 volts or 220 volts; single phase
- Power
- Max. 300VA
- Air pressure and consumption
- 4-6 bar; max. 10ltr/min
- Transport height
- 900 ± 20mm (or customer specified)
- Transport direction
- From left to right or right to left
- Pcb thickness
- Min. 0.6mm
- Max. pcb storage capacity
- 400 pcs (0.6mm thickness board)
- Motor
- VTV
- Plc
- Panasonic
- Elevating screw
- TBI
- Touch screen
- Qinglan
- Magnet switch
- SMC
- Air cylinder
- SMC
- Limit switch
- Omron
- Sensor
- Omron
- Relay
- Omron
- Switching-mode power supply
- Omron
- Flexible cable
- Igus
- Subcategory
- Pcb handeling machine
- Subcategory 2
- Pcb loader and unloader
- Listing ID
- 105425881
Description
PLC control system.
Owing to a strong and stable design
A user-friendly’ soft touch’ membrane control panel or touch screen can be selected
Top and bottom pneumatic clamps can ensure the positioning accuracy of the magazine
The special pneumatic structure design ensures zero PCB breakage
Owning an automatic diagnosing fault and display code function
Wear-resistant cable with long service life
SMEMA compatible

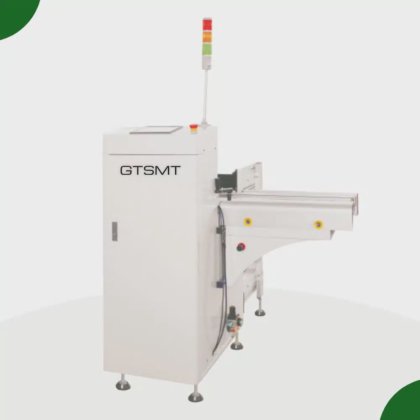

PCB Loader and Unloader L Type
The
PCB Loader and Unloader L Type
is a specialized
PCB handling solution
designed to feed or collect PCBs at a 90-degree angle, making it ideal for
SMT production lines
with limited space or custom layouts. Its
L-shaped structure
allows for flexible line configurations while maintaining smooth and reliable board transfer.
Space-Saving Board Transfer for SMT Lines
PCB Loader and Unloader L Type
equipment is available in both
magazine-type
and
stacking-type
formats and integrates seamlessly with upstream or downstream
belt conveyors
,
