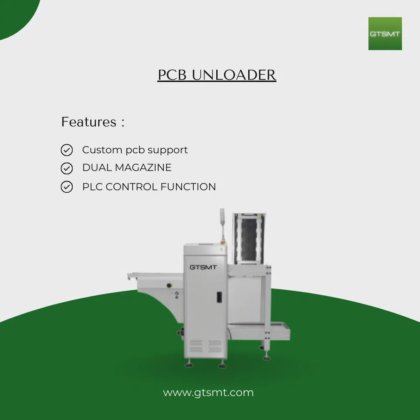

PCB Unloader Machine GT-400UL in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Product
- GT-400UL
- Control module
- PLC
- Transmission speed
- 10 Pcs/Sec
- Number of boards stored
- 50 Pcs
- Power supply
- 220V
- Circuit board thickness
- 0.6mm
- Effective size of circuit board (length * width)
- L300*W250mm (PCB size customization support)
- Transmission height
- 900 ± 20mm
- Machine dimension
- L1150 * Width 800mm * Height 1300mm
- Conveying direction
- Left -> Right , Right -> Left (optional)
- Weight
- 500 kg
- Dimensions
- 120 × 100 × 100 cm
- Subcategory
- Pcb handeling machine
- Subcategory 2
- Pcb loader and unloader
- Listing ID
- 105425968
Description
Pcb unloader machine to unload the pcb from the smt line it can store up to 50 pcs in a single magazine. We offer dual magazines with a standard machine the standard size is 300 * 300 mm PCB. We also provide customization support according to PCB size.
SMEMA Connection
Aluminum Frame
50 pcs PCB board
Customizable Supports
Screen Operation
PCB Unloader Machine GT-400UL
SMT
PCB Unloader Machine
is an essential component of modern
SMT assembly lines
, designed to automatically unload finished or inspected
printed circuit boards (PCBs)
from
conveyor systems
into
magazine racks
or collection platforms. Engineered for smooth and reliable operation, it ensures high-speed handling without damaging delicate electronic assemblies.
Automatic End-of-Line
PCB Handling
for SMT Production
PCB unloader is commonly used after
reflow oven
s
,
AOI inspection machines
, or
function testers
, helping streamline post-process board handling and improve overall production efficiency.
$2,000 USD
