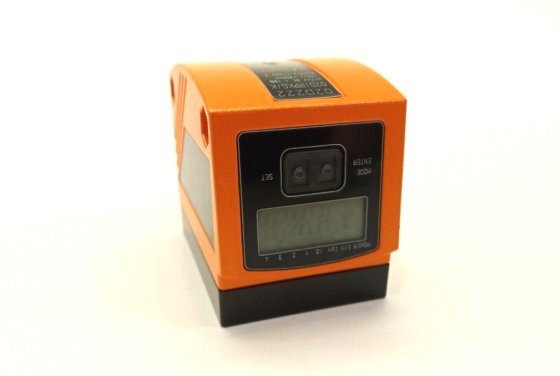

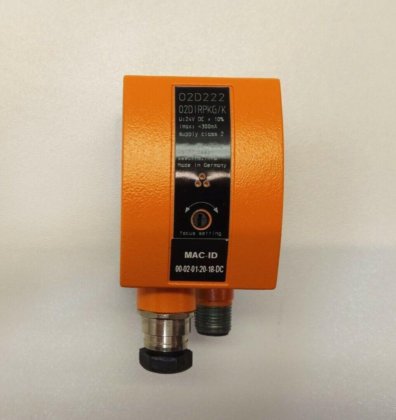

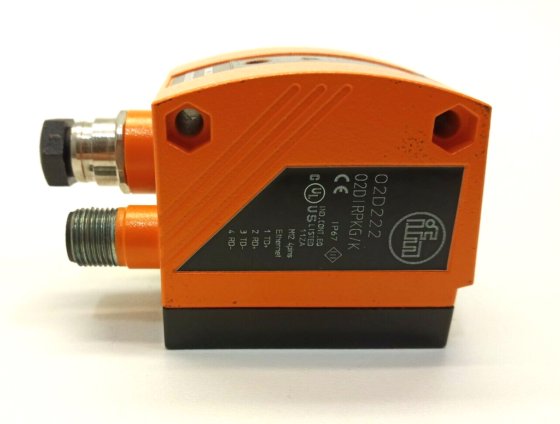

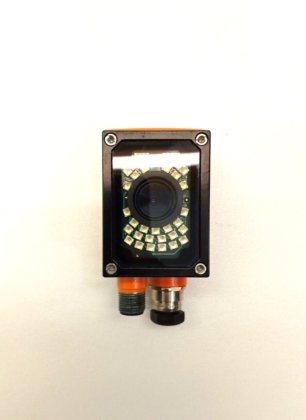

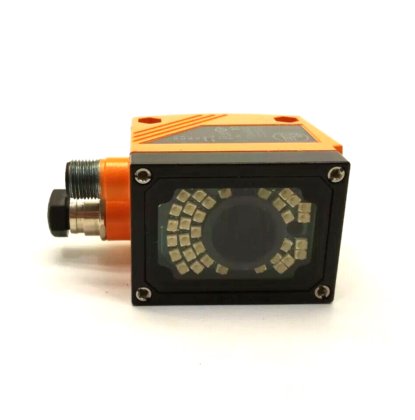

Ifm object detection system 02D220 detection sensor in Borken, North Rhine-Westphalia, Germany
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Stock number
- 25936
- Age rating
- No age restrictions
- Content
- 1 piece
- Light type
- red light
- Image resolution [px]
- 640 x 480
- Max. reading rate [hz]
- 20
- Communication interface
- Ethernet; RS232
- Dimensions [mm]
- 60 x 42 x 59
- Operating voltage tolerance [% ]
- 10
- Operating voltage [v]
- 24 DC
- Current consumption [ma]
- 300
- Protection class
- III
- Reverse polarity protection
- Yes
- Wavelength [nm]
- 625
- Image sensor
- CMOS image sensor B/W
- Laser marking
- Yes; (red; laser protection class 2 DIN EN 60825-1)
- Total number of outputs
- 2
- Number of digital outputs
- 2; (configurable)
- Output function
- 24 V PNP
- Max. voltage drop switching output dc [v]
- 2
- Current carrying capacity per output [ma]
- 100
- Short-circuit protection
- Yes
- Overload-proof
- Yes
- Field of view [mm]
- Working distanceField of viewSmallest detectable objectResolution7515 x 1110020 x 1520040 x 3040080 x 601000200 x 1502000400 x 300
- Working distance [mm]
- > 75
- Readable codes
- ECC200; PDF-417; QR; Interleaved 2-of-5; Industrial 2-of-5; Code 39; Code 93; Code 128; Pharmacode; Codabar; EAN8; EAN8 Add-On 2; EAN8 Add-On 5; EAN13; EAN13 Add-On 2; EAN13 Add-On 5; UPC-A; UPC-A Add-On 2; UPC-A Add-On 5; UPC-E; UPC-E Add-On 2; UPC-E Add-On 5; RSS-14; RSS-14 Truncated; RSS-14 Stacked; RSS-14 Stack Omnidirection; RSS Limited; RSS Expanded; RSS Expanded Stacked
- Omnidirectional reading
- Yes
- Max. inclination to the image plane [°]
- 45
- Parameterization options
- Via 2 buttons and 10-segment display or via PC/notebook with operating software
- Number of rs232 interfaces
- 1
- Number of ethernet interfaces
- 1
- Transmission standard
- 10Base-T; 100Base-TX
- Transmission rate
- 10; 100
- Protocol
- TCP/IP; UDP; EtherNet/IP
- Ambient temperature [°c]
- -10...50
- Storage temperature [°c]
- -40...85
- Protection type
- IP 67
- Emv
- Interference emission EN 61326, interference immunity EN 61326
- Shock resistance
- IEC 60028-2-27
- Vibration resistance
- IEC 60028-2-6
- Mttf [years]
- 94
- Weight [g]
- 447
- Display
- Function; 3 x LED, green; switching state 4 x LED, yellow 10-segment display, 4-digit
- Accessories optional
- Operating software; mounting accessories
- Remarks
- Operating voltage "supply class 2" according to cULus
- Packaging unit
- 1 piece
- Plug connection
- 1 x M12
- Item condition
- New without original packaging. This article comes from the liquidation of one of Germany's largest car parts suppliers and was stored there in paternosters.
- Category
- Buses in Germany
- Subcategory
- Industrial supplies
- Subcategory 2
- Autom., drive, control
- Subcategory 3
- Plc, bus & logic systems
- Listing ID
- 105735714
Description
Product Features
Electrical Data
Internal illumination: yes; (red light: 625 nm segmented into 4 areas, individually controllable via PC operating program)
Inputs/Outputs
Number of inputs and outputs: Number of digital outputs: 2
Inputs
Internal trigger; 24 V PNP (IEC 61131-2 Type 1); RS-232; TCP/IP; EtherNet/IP
Outputs
Detection range
Software / Programming
Interfaces
Ethernet
Factory settings: IP address: 192.168.0.79 Subnet mask: 255.255.255.0 Gateway IP address: 192.168.0.201 MAC address: see nameplate
Environmental Conditions
Approvals / Tests
Mechanical Data
Materials: Housing: powder-coated die-cast zinc; front panel: glass; LED window: PC
Displays / Controls
Accessories
Remarks
Electrical connection - Ethernet
Electrical connection - RS-232
Therefore, some original packaging is missing and some items show signs of storage.
H1R5A10K36-2
