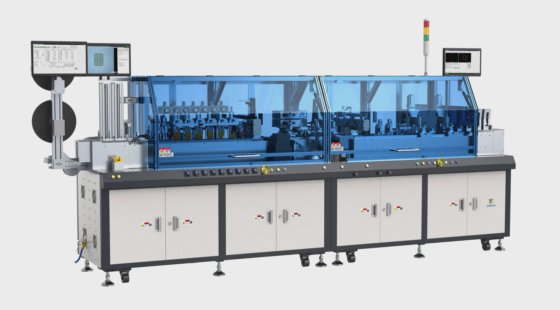

Smart Card Milling and Embedding Machine IC Pick and Place Machine in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Automatic grade
- Full-Automatic
- Weight
- About 2500kgs
- Electric
- AC 380V/50 Hz
- Power
- 12kw
- Speed
- 5000-6000cph
- Applicable card
- PVC, Teslin, ABS, PC, PETG, Paper, etc.
- Operator
- 1person
- Advantange
- Online Glue Dispensing
- Electricity input
- Voltage: AC380V(AC220V) 50/60Hz
- Control technology
- PC Control+PLC Control+CCD Detection
- Passrate
- 99.5%
- Tolerance
- ±0.01
- Compress air consumption
- 300L/Min
- Current
- 25A
- Dimension
- H1620*W870*L3900mm
- Transport package
- The Wooden Case
- Specification
- L3900*W1200*H1800mm
- Hs code
- 8462490000
- Category
- PCB Assembly in China
- Subcategory
- Smart card making machine
- Subcategory 2
- Manufacturing & processing machinery
- Listing ID
- 105889344
Description
Product Description
Smart Card Milling and Embedding Machine ic pick and place machine
Overall Dimension H1620*W870*L3900mm
Machine Weight about 2500kg
Electricity Input 1.Voltage: AC220V 50/60Hz (AC380V for Vacuum Cleaner ) 2.Current: 25A
Power Consumption 12.00KW
Compressed Air 6.00 kg/cm²
Compress Air Consumption 300L/min
Control Technology PC Control+PLC Control+CCD Detection
Servo Precision: X, Y,Z=0. 0125mm
Tolerance ±0.01mm
Operator 1 person
Pass Rate 99.50%
Card Output Speed 5000-6000 PCS/H (For Contact card only)2500-3000 PCS/H (For Solder Paste Tech DI card)4000-5000 PCS/H (For ACF Tech DI card)
Equipped with machine acuum Cleaner (one set) & Chiller (one set)
Applicable materials Various kinds Chips, ISO Standard Card Body
BRIEF INTRODUCTION
JGF
-
5000C+ is a high speed milling
,
accuracy embedding
, online lamination and detection in One
operation
production l
ine
.
With
double
cards
detection, color sensor or QR detection, double high speed milling
stations
