2019 Tsugami M08SY Lathe with Subspindle, Live Tooling, Y Axis, Barfeed in Ohio, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2019
- Serial number
- 23333B
- Stock number
- 120204
- Control
- Fanuc 0i-TF
- Chuck sizes
- 8" Hyd on Main Spindle/6" Hyd on Subspindle
- Maximum swing/over carriage
- 11" / not avail.
- Maximum cutting diameter
- 11"
- Maximum cutting length
- 14.96"
- X-axis travel
- 8.7"
- Y-axis travel
- 3.94"
- Z-axis travel
- 15.75"
- C1 axis spindle rotation/c2 axis spindle rotation
- .001 / .001 Degree
- B-axis travel (subspindle)
- 19.92"
- Spindle nose / spindle bore / bar capacity
- A2-6" / 2.5" / 2.0"
- Spindle speed / sub spindle speed
- 4,500 RPM / not avail.
- Spindle motor / sub spindle motor
- 15 HP / not avail.
- Rotary tool speed / rotary motor
- 5,000 RPM / not avail.
- Number of turret positions

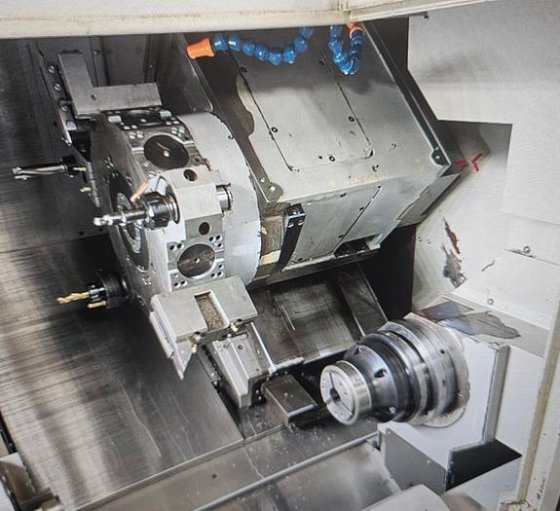

- 12 Station Turret
- Rapid traverse rates x, b / z
- 945 IPM / 1062 IPM
- Machine dimensions
- 97.24″ x 72.83″ x 75.98″
- Machine weight
- 13,000 lbs.
- Category
- CNC Lathes in USA
- Subcategory
- Cnc lathes 4 axis or more
- Listing ID
- 105907308
Description
Y Axis Capability (Off Center)
Subspindle
Full C Axis Spindle Rotation

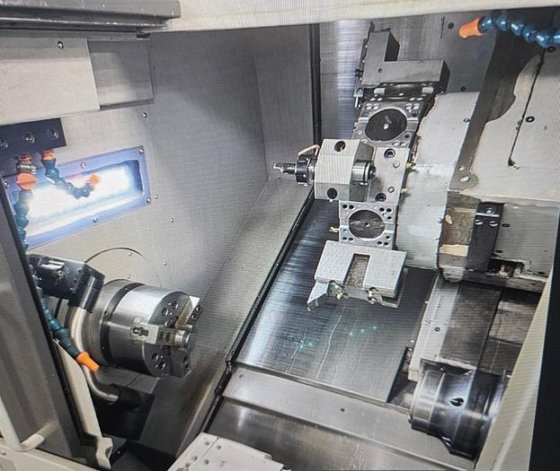

Live Milling / Drilling Capability
8" 3 Jaw Hydraulic Chuck on Main Spindle
6" 3 Jaw Hydraulic Chuck on Subspindle
Automatic Tool Eye
Chip Conveyor

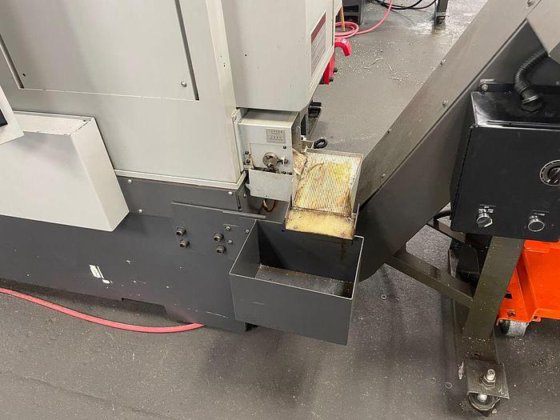

Parts Catcher
Parts Exit Conveyor

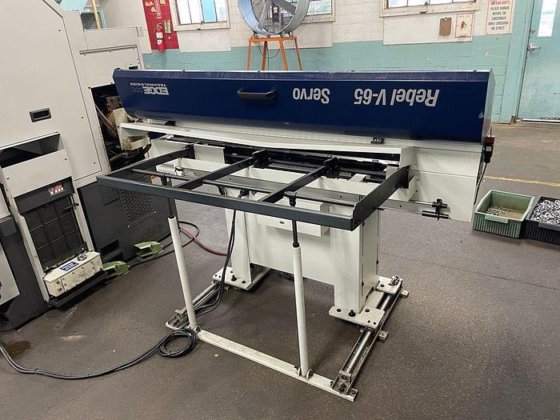

Edge Technologies Rebel V-65 Servo Barfeed System
Mill Spindle Synchronous Tapping
Miscellaneous Static Tool Holders
(1) Axial & (1) Radial Live Holder Included
Coolant System with Tank & Pump
**Run Time Hours 4,926**
**Cutting Time Hours 3,340**
