Automatic Double Wire Binding Machine (without Mold) in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Video Technical Support, Online Support
- Work speed
- up to 1000 Volume/hour
- Air pressure
- 5 - 8 Bar
- Binding capacity
- 1/4″ - 1¼″
- Max. binding length
- 360 mm (14.2″)
- Transport package
- Wooden Case
- Specification
- 1690× 1790× 1640 mm
- Category
- Packaging Machinery in China
- Subcategory
- Packaging & printing
- Subcategory 2
- Post-press equipment
- Listing ID
- 105979416
Description
Product Description

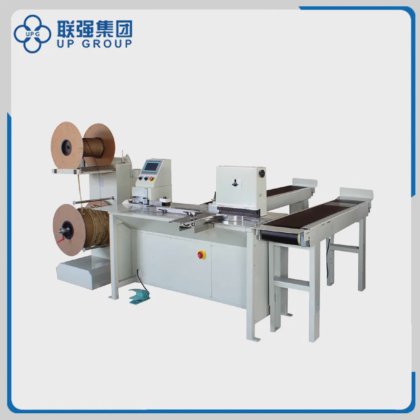

The machine is used for binding double wire books, notebooks, wall calendars, etc. It can bind 1/4"–1" without changing binding molds. With the integration of automatically unwinding the spool, loops cutting, conveying and closing, it increased the production efficiency and lowered the cost remarkably. Controlled by PLC. Easy to operate and adjust. There are no tools to change as the closing press is adjustable for all the diameters. Especially suitable for binding the notebooks which the cover is bigger than inner sheet.
Specification
Model MF - SDM360
Work speed up to 1000 Volume/hour
Air pressure 5 - 8 Bar
Binding capacity 1/4″ - 1¼″
Max. binding length 360 mm (14.2″)
Power 1PH, 220V, 50/60Hz (other voltage on request)
Main machine 1.95×0.75×1.25 m
Feeding reel 0.8×0.45×1.06 m
Conveyor 2.16×0.37×0.7 m
Weight 150 kg
