Small Glass Laser Sandblasting Machine in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Specs
- 120W
- Size
- 800*800*900mm
- Weight
- 300KG
- Working mode
- Fiber laser moving engraving
- Scope of work
- 600*600*100mm
- Power supply
- 220V 50Hz-60Hz
- Working environment
- ±5-35℃
- Packaging size
- 1100*1100*1100mm
- Packing weight
- 380KG
- Total power
- 6KW
- Laser power
- 120W
- Mechanical repeatability
- ≤±0.25mm
- Laser repeatability
- ≤±0.002mm
- Pc
- Win7/win10
- Cooling system
- Water cooling

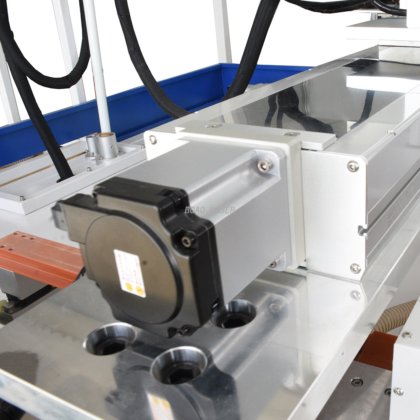

- Motion system
- Professional new generation laser control system & high precision servo motion system
- Graphics format
- EPS/DXF/PLT-CDR/Al/AC6
- Software
- AutoCAD、CorelDRAW、Al、JD
- Subcategory
- Machinery
- Subcategory 2
- Glass laser cutting machine
- Listing ID
- 106424637
Description
Glass Laser Sandblasting & Drilling Machine

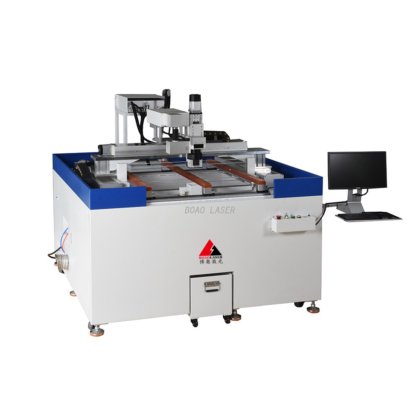

➤ Machine Photo
1. The large-format intelligent mirror laser sandblasting machine replaces the traditional etching process. It does not require film pasting, film engraving, or sandblasting. It has a fast engraving speed and is environmentally friendly and pollution-free. It has a low cost of use, no consumables and vulnerable parts, and no need to open a mold. It can be processed as long as there is a drawing. The maximum size that can be sandblasted is 600*600mm, and the sandblasting size can also be customized.
2. Laser sandblasting of smart mirrors is a new type of environmentally friendly and energy-saving deep processing technology (sandblasting, paint stripping, and drilling). It can remove the protective paint of smart mirrors and painted glass at one time and achieve a frosted effect. It is fast and does not damage the mirror and glass surfaces. After processing, the mirror is crystal clear without residue.
