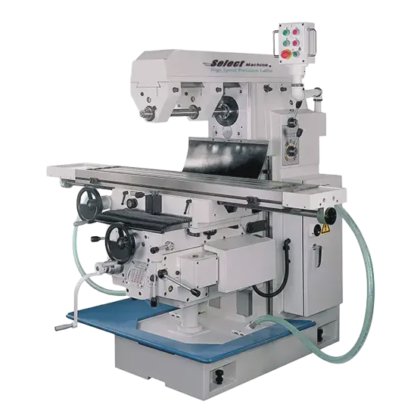

Vertical & Horizontal Milling Machine CS-H450 in Roanoke, VA, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Working surface (length x width)
- 1,300 x 300 (51-3/16 x 11-13/16 inch) mm
- Travel (longitudinal x cross x vertical)
- 950 x 320 x 470 (37-3/8 x 12-1/2 x 18-1/2 inch) mm
- T slot (nominal x no. x pitch)
- 16 x 3 x 70 (5/8 x 3 x 2-3/4 inch) mm
- Swivel table (left & right)
- (option) deg
- Spindle nose
- ISO R297 No. 40
- Distance from center of spindle to overarm
- 135 (5-1/4 inch) mm
- Distance from center of spindle to table
- 22 ~ 492 (7/8 ~19-3/8 inch) mm
- For horizontal spindle
- AC 3.7 (5HP)-4P kW
- For table feed and rapid traverse
- AC 2.2 (3HP)-4P kW
- For cutting fluid pump
- AC 0.1(1/8HP)-2P kW
- Machine height
- 1,710 (67-5/16 inch) mm
- Floor space (longitudinal x cross)
- 670 x 1,200 (26-3/8 x 47-1/4 inch) mm
- Net weight (approx.)
- 2,350 (5,170 lbs) kg
- Standard color
- Blue & White
- Category
- Milling Machines in USA
- Subcategory
- Mills
- Subcategory 2
- Knee mills
- Listing ID
- 106591201
