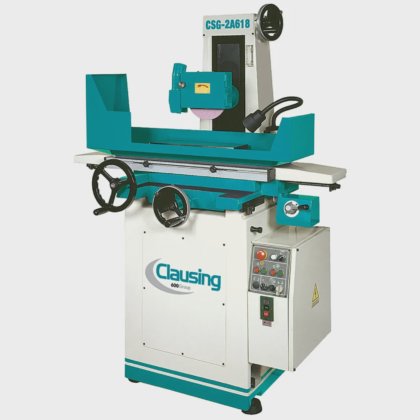

Clausing CSG2A618 Long. Hydraulic and Motorized Crossfeed | CSG2A618 in Fort Wayne, IN, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Stock number
- CSG2A618
- Weight
- 2150 lbs
- Shipping dimensions
- 65 × 45 × 76 in
- Category
- Grinding machines in USA
- Subcategory
- Machine type
- Subcategory 2
- New machines
- Subcategory 3
- Sharp machinery
- Subcategory 4
- New surface grinders
- Listing ID
- 106660754
Description
, or click on the “Request Quote” button below for a PDF quote with accessory pricing.
*Pricing is subject to change at any time.
Clausing Surface Grinders are constructed of high grade cast iron with heavy walls and reinforced ribs to provide excellent rigidity and dampening. High precision cartridge type spindle is supported by 2 preloaded precision angular contact ball bearings and one NN type roller bearing and driven by V3 class motor that allows highly accurate grinding performance.
Enlarged column and base create high stability and rigidity. The maximum height is 18” from table surface to the center line of spindle. Hydraulic longitudinal table movement and servo motor drive for cross feed movement. The saddle rests on precision hand-scraped double V-ways, and the table rests on precision hand-scraped V and Flat ways coated with TURCIT B along with auto lubrication gives excellent wear resistance.
$25,180 USD
