Allen Bradley CompactLogix 5380 Controller 5069-L330ERM w/DC/Analog Input/Output in Walpole, MA, USA

Price references only SOP (Surplus Open Pre-owned)

5069-L330ERM/A - Same pre-owned costs $3,780.00

(2) 5069-OB16/A DC Output - Same pre-owned costs $516.00

5069-IB16F/A DC Input - Same pre-owned costs $435.00

5069-IF8/A Analog Input - Same pre-owned costs $1,059.00

5069-OF8/A Analog Output - Same pre-owned costs $1,206.00

Total price for the system is about $7,500

Condition:

This Allen Bradley CompactLogix 5380 Controller 5069-L330ERM w/ DC/Analog Input/Output Modules was kept as a good spare.

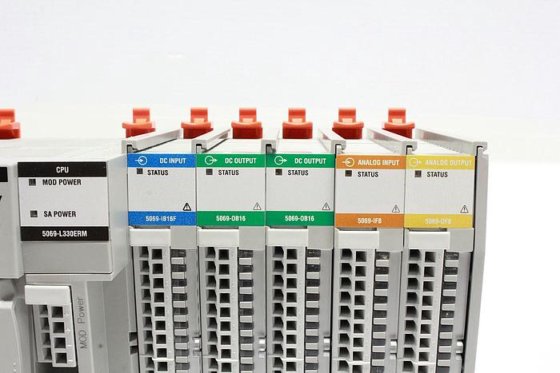

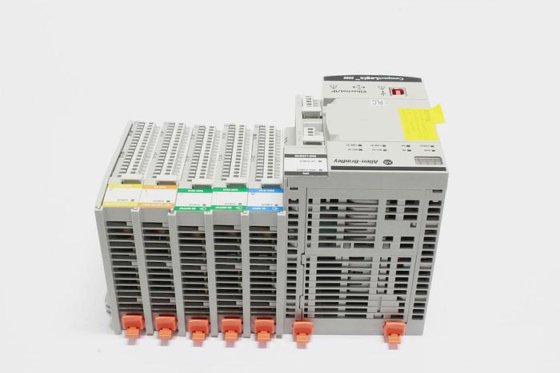

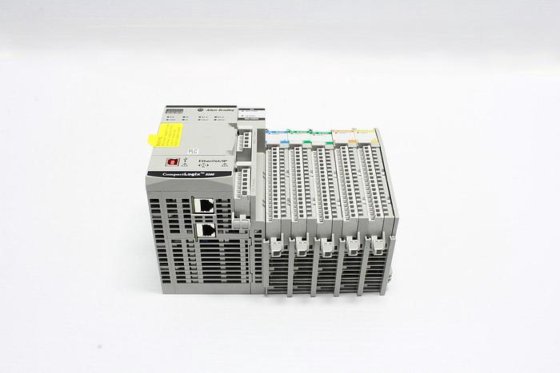

System consists of:

Allen Bradley CompactLogix 5380 Controller 5069-L330ERMA

(2) 5069-OB16/A DC Output

5069-IB16F/A DC Input

5069-IF8/A Analog Input

5069-OF8/A Analog Output

Configuration and Setup:

5069-L330ERM

Communication: EtherNet/IP, USB

Depth: 136.81mm, 5.39"

Height: 123mm, 4.84"

Interface: 2 x 1 Gb EtherNet port

Isolation: 300V(cont);No isolation between ENET ports

Memory: 3MB

Number Of Channels: 0

Power Supply: MOD Power 18…32V DC SA Power 0…32V DC 0…240V AC, 47…63 Hz ATEX/IECEX, 125V AC max

Processor: Quad Core

5069-OB16 DC Output

No. of Outputs: 16 DC output channels

Output Voltage signal, nominal: 24VDC

Output Voltage Signal range: 10-32VDC

Output current rating: 0.5 A resistive per channel @ 10…32V DC 8 A resistive per module @ 10…32V DC, max

Surge Current per point: 1 A max for 10 ms per point, repeatable every 2 s

Output delay time: 100 µs, ±10 µs @ 25 °C (77 °F) @ 0.5 A

Pulse width, min: 200 µs @ 0.5 A @ 25 °C (77 °F)

No. of output groups: One (1)

Removable Terminal Block: 5069-RTB18-SPRING RTB; 5069-RTB18-SCREW RTB

Output states (Fault mode, fault state Program mode): Hold Last State; On; Off (default)

Duration of fault mode per point: 1 s, 2 s, 5 s, 10 s, Forever (default)

Number of Inputs: N/A

Number of Outputs: 1 Group of 16 Channels (Sourcing)

Voltage Category: 12/24 Volts DC Source

Input Voltage Range: N/A

Output Voltage Range: 10-32 Volts DC

Power Dissipation: 3.25 Watts

Enclosure Type: None (Open Style)

Dimensions: 5.4 x 0.87 x 4.2 in (138 x 22 x 105 mm)

Weight: 0.39 lbs (175 g)

5069-IB16F DC Input

No. of Inputs: 16

Input Voltage: 12/24 VDC

Operating Voltage Range: 10-32VDC

Module Keying: Electronic

Input Delay Time, OFF to ON: 10 µs, ±1 µs @ 25 °C (77 °F)

Power Dissipation (Max): 3.9 W

MOD Power: 75 mA @ 18…32V DC

MOD Power passthrough, max: 9.55 A @ 18…32V DC

SA Power: 200 mA @ 79…264V AC

SA Power Passthrough, max: 9.95 A @ 79…264V AC

Thermal Dissipation: 13.3 BTU/hr

Pulse and period measurements: Supported

Events: Four events supported (triggered by any input or simple counters)

Number of Inputs: 1 Group of 16 Channels (Sinking)

Number of Outputs: N/A

Voltage Category: 12/24 Volts DC Sink

Input Voltage Range: 10-32 Volts DC

Output Voltage Range: N/A

Power Dissipation: 3.9 Watts

Enclosure Type: None (Open Style)

Dimensions: 5.4 x 0.87 x 4.2 in (138 x 22 x 105 mm)

Weight: 0.39 lbs (175 g)

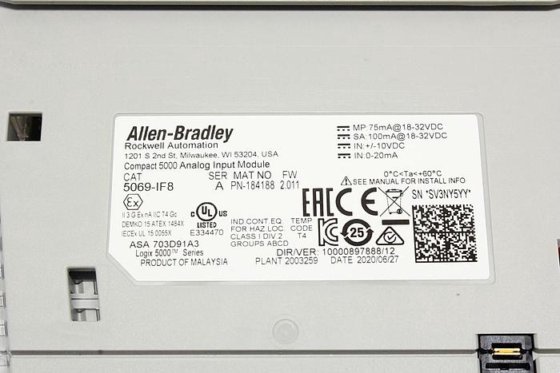

5069-IF8 Analog Input

No. of Inputs: 8 differential inputs

Compatible Voltage signal: ±10VDC; 0-10VDC; 0-5VDC

Compatible Current signal: 0-20 mA and 4-20 mA

Conversion method: Sigma-Delta conversion method, Two 24-bit multiplexed ADC

Input notch filter (Hz) selections: 5, 10 (50/60 Default), 15, 20, 50, 60, 100, 200, 500, 1000, 2500, 5000, 10000, 15625, 25000, 31250, 62500

HART handheld compliance: Add an external 250 ? resistor into the current loop for HART transmitter compliance.

Overvoltage protection, max: ± 30V DC

Overcurrent protection, max: ±30 mA

Open circuit detection time: 2 seconds

Module Keying: Electronic

Number of Inputs: 8 Differential Inputs

Number of Outputs: N/A

Voltage Category: N/A

Input Voltage Range: +/- 10 Volts, 0-10 Volts, 0-5 Volts

Output Voltage Range: N/A

Power Dissipation: 2.1 Voltage Mode and 2.4 Current Mode

Enclosure Type: None (Open Style)

Dimensions: 5.4 x 0.9 x 4.2 in (138 x 22 x 105 mm)

Weight: 0.39 lbs (175 g)

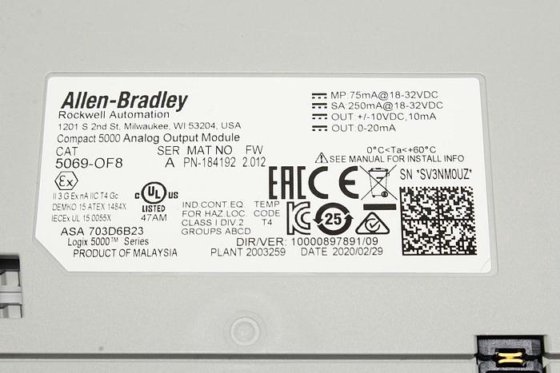

5069-OF8 Analog Output

No. of Inputs: 8 channels

Output Voltage signal: ±10VDC; 0-10VDC; 0-5VDC

Output Current signal: 0-20 mA and 4-20 mA

Conversion method: R-Ladder DAC, monotonicity with no missing codes

Conversion time per channel: 25 µs

Resolution: 16 bits across ± 10.5V - 320 µV/bit 16 bits across 10.5V - 160 µV/bit 16 bits across 5.25V - 80 µV/bit 16 bits across 21 mA - 320 nA/bit

Open circuit detection: Current mode only

Data format: IEEE 32-bit floating point

Analog output ratings: +/–10V DC, 0…20 mA per channel

MOD Power: 75 mA @ 18…32V DC

MOD Power Passthrough, max: 9.55 A @ 18…32V DC

SA Power: 250 mA @ 18…32V DC

SA Power Passthrough, max: 9.95 A @ 18…32V DC

Number of Inputs: N/A

Number of Outputs: 8 Voltage or Current Outputs

Voltage Category: N/A

Input Voltage Range: N/A

Output Voltage Range: +/- 10 Volts, 0-10 Volts, 0-5 Volts

Power Dissipation: 5.3 Watts

Enclosure Type: None (Open Style)

Dimensions: 5.4 x 0.9 x 4.2 in (138 x 22 x 105 mm)

Weight: 0.39 lbs (175 g)

Please do not hesitate to contact us if you have any questions.
