2022 CNC FACTORY PYTHON XPR FLAT TABLE MACHINE (W/LOADING/UNLOADING) [FT-010948] in United States
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2022
- Stock number
- FT-010948
- Comments
- Late model "Nesting System"...ready for immediate delivery!
- Elect./voltage
- 220 V, 60 Cy, 3 Ph.
- Current status
- Active
- Appr. repl. cost
- 110000
- Machine type
- FLAT TABLE MACHINE (W/LOADING/UNLOADING)
- Subcategory
- Cnc flat table mach.ctr.
- Subcategory 2
- Flat table machine (w/loading/unloading)
- Listing ID
- 107483738
Description

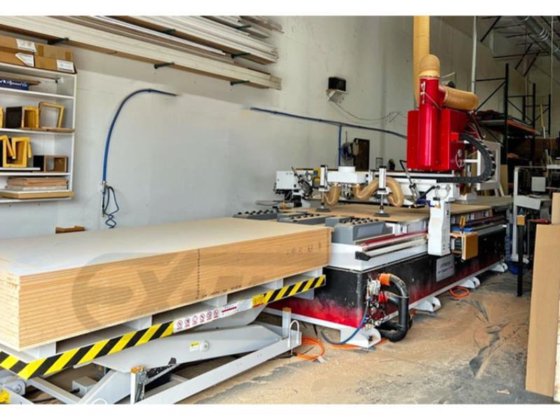

CNC FACTORY PYTHON XPR FLAT TABLE MACHINE (W/LOADING, UNLOADING):
-- Specifications:
5' x 10' Single Table machine: stationary phenolic table is machined with a square "MATRIX" grid pattern for fixturing parts,
-- Working field:
"X" axis 122" (3,099 mm), “Y axis 62 (1,575 mm) , "Z" axis stroke is 12" (305 mm).
-- Positioning speed:
"X" & "Y" axis 233 FPM (71 MPM), "Z" axis 82 FPM (25 MPM).
Closed loop AC Servo drive system driving precision helical rack & pinion in "X" & "Y" axis & ground ball screw in "Z" axis;
All axes ride on extra-large precision profile linear guide ways.

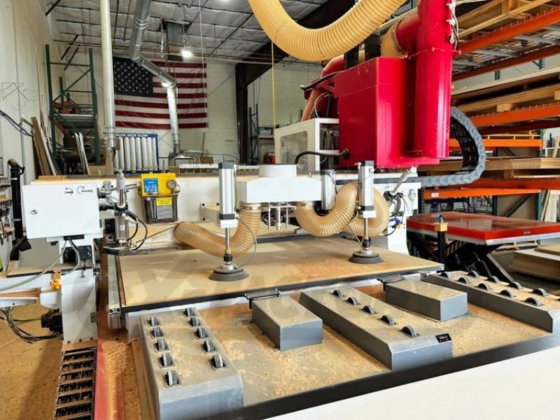

-- Work Table:
"MATRIX" grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested based machining".
Pneumatic Pop-Up Pins for manual and automatic material placement.
-- Boring Unit:
2 HP (1.5 KW) 7,000 RPM motor with (9) Independent Vertical Spindles, on 32 mm centers.
-- Machining:
