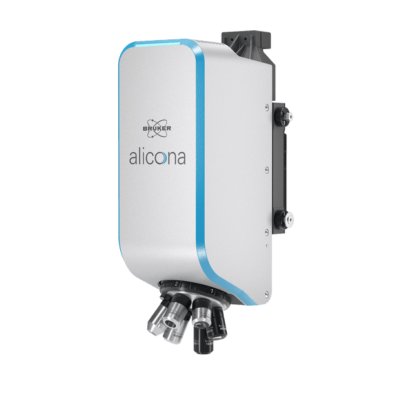

SensorX in Raaba, Austria
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Measurement principle
- Non-contact, optical, three-dimensional, Technologies: Advanced Focus-Variation, Focus Probing, Vertical Focus Probing
- Software
- MetMaX: State-of-the-art CAD measurement planning, PDF reporting, Alicona Inspect,
- Number of measurement points
- Single measurement: X: 2160, Y: 2160, X x Y: 4.6 million; ImageField: up to 500 million
- Travel distance z
- 100 mm
- Hardware interface
- ControlServer with 19° rack compatibility
- Cable length
- from E-box to sensor: 4.5 m, from ControlServer to E-box: 3 m
- Surface texture
- Any surface, including polished metals
- Max. measurable slope angle
- Advanced Focus-Variation: 87° / Vertical Focus Probing: > 90°

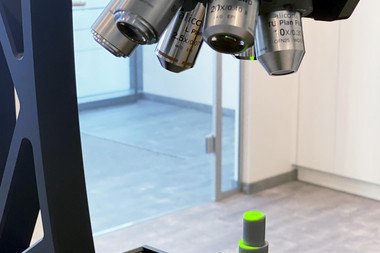

- Objective name
- 1900 WD30; 1500 WD70; 800 WD37; 800 WD17; 400 WD19; 150 WD11
- Working distance
- mm; 30; 70; 37; 17.5; 19; 11
- Lateral measurement range (x,y)
- mm; 3.8; 2.7; 1.6; 1.6; 0.66; 0.3
- Measurement point distance
- µm; 1.77; 1.44; 0.72; 0.72; 0.36; 0.14
- Measurement noise
- nm; 100; 180; 90; 20; 16; 10
- Vertical resolution
- nm; 290; 500; 260; 60; 45; 30
- Category
- Optical Spectrum Analyzers
- Subcategory
- Optical 3d measuring devices
- Listing ID
- 107491357
Description

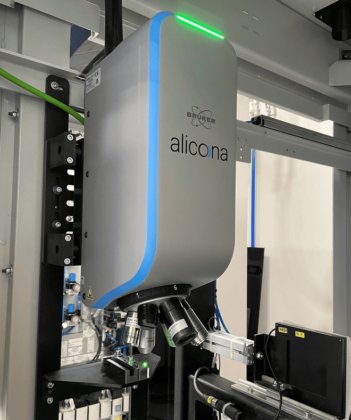

The New Standard in OEM-Ready Inline Metrology
3D Sensor for OEM Integration
Bring world-class measurement directly into your production line: The SensorX is Bruker Alicona's first sensor developed exclusively for OEM integration. Powered by
Advanced Focus-Variation
technology, it enables machine builders and automation specialists to seamlessly embed precise inline 3D metrology into their systems - delivering traceable quality control, real-time process feedback, and a decisive competitive edge.
Trusted Across industries

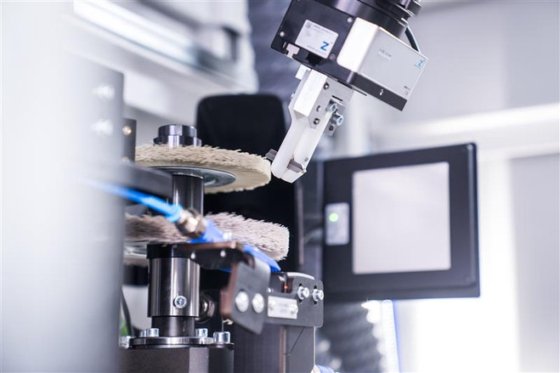

Tool grinding and edge preparation
Machining centers and precision manufacturing
Robotic automation & closed-loop process cells
Medical, aerospace, and automotive production systems
Read more
Request product catalogue
Trusted by Leading Manufacturers

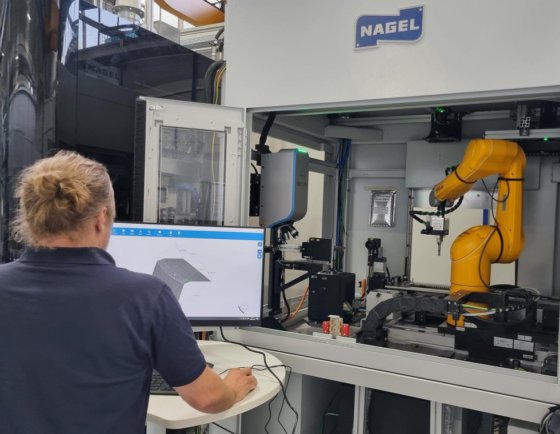

Customer Spotlight: Nagel Maschinen- und Werkzeugfabrik
