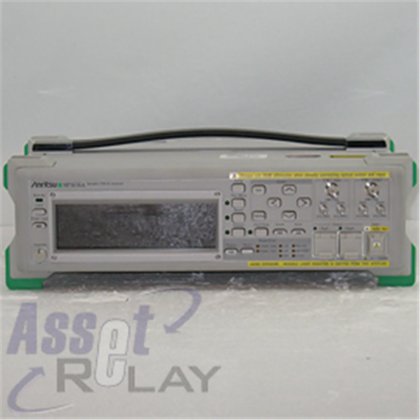

Anritsu MP1656A—Portable STM-16 Analyzer with High-Sensitivity Optical Input, 1310/1550 nm DFB-LD Output, Error Monitoring, and in Gatineau, Quebec, Canada
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- MP1656A_OPT03
- Bit rate
- 2488.32 Mb/s
- Optical output
- Wavelengths: 1310 nm
- Output power
- +5 to -2 dBm.
- Input/output connectors type
- FC/PC
- Optical input
- ±20 nm (1310 nm)
- Input sensitivity
- -9 to -29 dBm
- Clock
- Internal, External, Receive
- Remote and others
- GIPB, RS-232C, FDD, Buzzer, Real-Time Cloc
- Option 01
- 1.55 µm optical output (DFB-LD)
- Option 02
- 1.31/1.55 µm switchable optical output (DFB-LD)
- Option 03
- 1.31 µm optical output (DFB-LD)
- Subcategory
- Analyzers
- Subcategory 2
- Fiber optic test equipment
- Subcategory 3
- Communication signal analyzers (csa)
- Listing ID
- 18387402
Description
The Anritsu MP1656A Portable STM-16 Analyzer is a compact and lightweight optical testing device designed for SONET/SDH network analysis. It features high-sensitivity optical input (-29 dBm) and supports DFB-LD output at 1310 nm and 1550 nm. The analyzer includes error performance monitoring (G.826) and section trace (J0) evaluation, making it ideal for regenerator section tests and STM-16 layer analysis. It can operate standalone or in combination with the MP1570A SONET/SDH/PDH/ATM Analyzer for advanced testing capabilities.
Anritsu MP1656A with option 03 Portable STM-16 Analyzer with option 1.31µ m optical output (DFB-LD).
Specifications at a glance of the MP1656A:
List pf possible options of the MP1656A:
