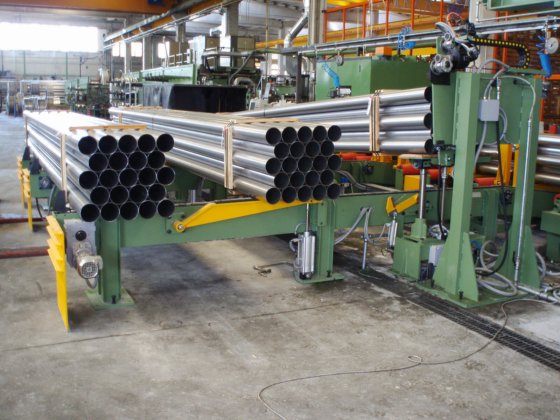

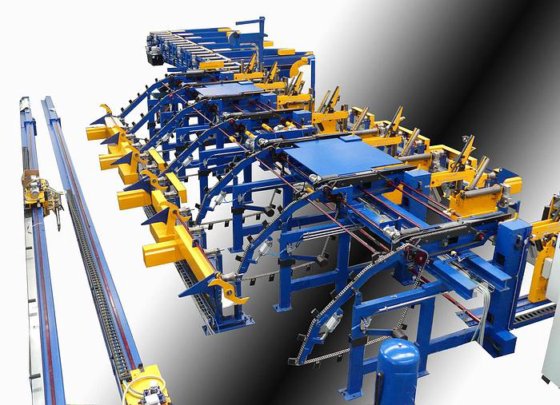

F&P Auto.Tube/Profile Bundling Systems (New) #3478 in Thiene, Veneto, Italy

THEY MAY INCLUDE: TUBE SCARFING UNITS, BUNDLE STRAPPING EQUIPMENT, A WATER DRAINAGE SYSTEM, WEIGHING CELLS, A SCRAP BLOW-AWAY & CHOP SYSTEM… AND OTHER OPTIONAL EQUIPMENT
HEXAGONAL, SQUARE AND RECTANGULAR BUNDLES CAN BE FORMED.
--
Typically a System can handle tubes as follows, with wall thicknesses from 2mm to 8mm:
round section tubes
ø 76,2 → ø 219,1mm
square section tubes
60 → 175mm
rectangular section tubes
80 x 40 → 250 x 100mm
… the max. bundle weight being 3500 kg, with these dimensions:
-for round section tubes
min 250 x 250mm / max 700 x 600mm
(hex min 175mm / hex max 350mm)
-for square section tubes
min 250 x 250mm
max 700 x 600mm
-for rectangular section tubes
min 250 x 250mm
max 700 x 600mm
--
The System often includes:
- fixed or variable geometry entry roll tables
- tube scarfing units

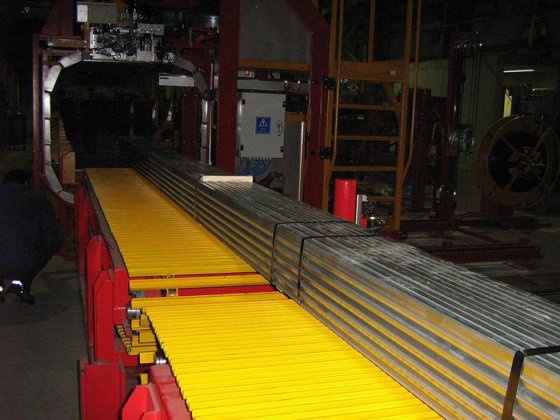

- manual or automatic strapping equipment
- post-strapping bundle handling chain-conveyors, frontal and lateral off-loaders
- a water drainage system
- a bundle weighing cell with data printer
- touch screen type programming station
- a wooden spacer dispenser (for square bundles of round section tubes)
- a scrap blow-away & chop system
..…

-
