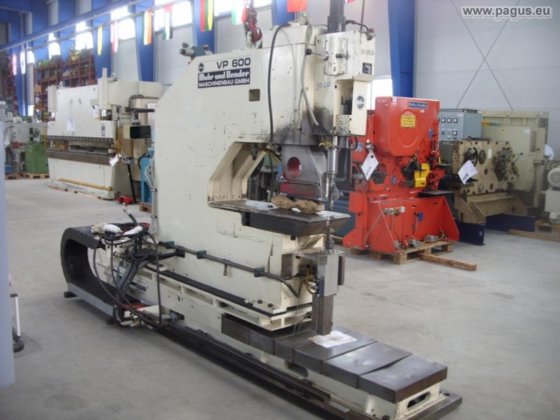

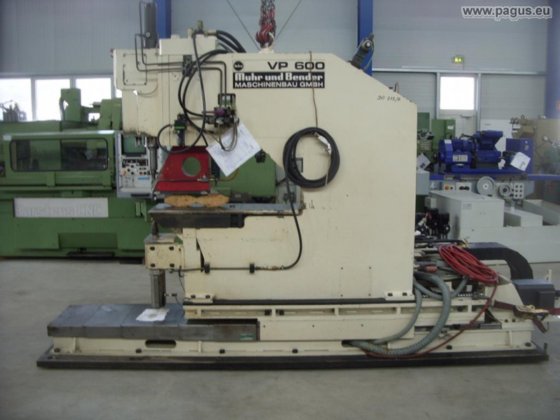

MUBEA panel drilling machine in Zschepplin, Saxony, Germany
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- BO212
- Construction year
- 1993
- Control type
- fixing hole diameter
- Workpiece thickness max.
- 80 mm
- Workpiece thickness min.
- 5 mm
- Plate size without repositioning
- 2000x1000 mm
- Plate size min.
- 100x100 mm
- Control
- CNC Mubea Matic100
- Workpiece weight
- 750 kg
- Deburring unit max.
- d=40 mm
- Traversing
- 80 m/min
- Working height
- 1050 mm
- Positioning accuracy
- +/- 0.5 mm
- Advance-length
- Max. 150 mm
- Spindle speeds
- 112-180-224-280-355-560 U/min
- Gripper device
- 4 pieces
- Tool holder
- Cone DIN 6327
- Longitudinal
- x=2800 mm
- Querweg
- y=1000 mm
- Spindle stroke
- Max. 150 mm
- Total power requirement
- 25,0 kW
- Space requirement about lxbxh
- 5,0x5,5x2,7 m
- Https
- //
- Category
- CNC Lathes in Germany
- Subcategory
- Drill
- Subcategory 2
- Metalworking machines
- Listing ID
- 52385650
Description
Plate drilling machine
MUHR & BENDER (MUBEA)
Mubea-Matic PI 200x100-1D
Hole diameter:min/max:10/40 mm
Opening of the gripper min/max:Type I: 5/45 mm
Opening of gripper min/max:Type II: 45/85 mm
Rapid traverse::8 m/min
Work table::L:2500;W:950 mm
Documentation:
Additional information
Panel size with repositioning also 1000x4000mm possible!
with roller conveyors 2x1000mm

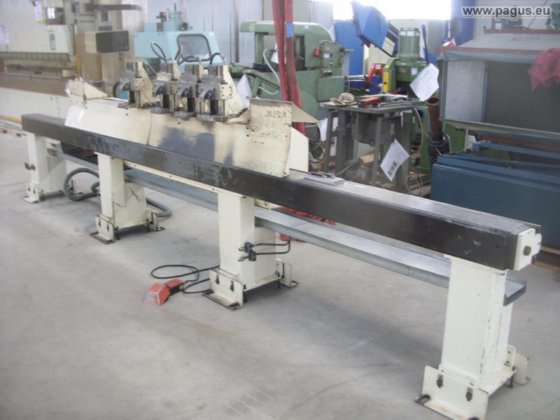

Material support tables complete with support elements, guide rail for guiding and transporting the positioning carriage
Cooling of the drill by compressed air
Control for 2 axes positioning x-axis 80m/min and y-axis 30m/min,
Storage capacity approx. 10,000 programs

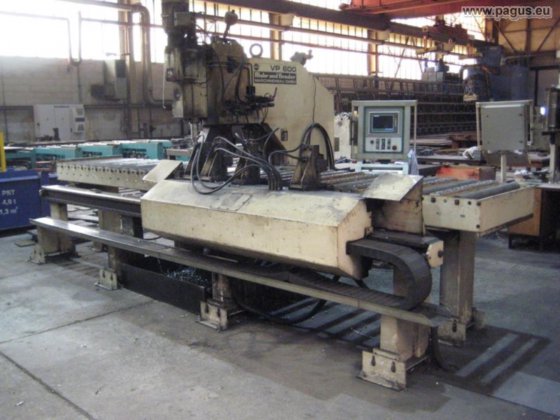

Positioning carriage, 2 material support tables, full material path,

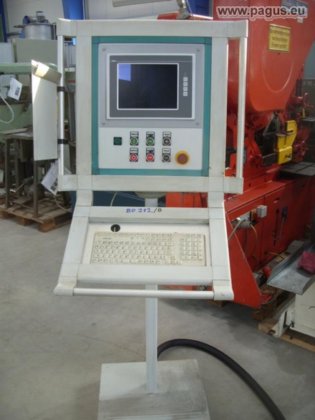

control cabinet, control panel, hydraulic unit
Accessories:
2 drill sleeves, roller conveyor 1800x1000mm
Services offered by seller
This seller offers spare parts
