Box Compression Tester (Computer Model) GT-N02B in Quanzhou, Fujian, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- GT-N02B
- Order(moq)
- 1
- Payment
- T/T, L/C
- Column number
- 2
- Measuring range
- 0-10KN, 20KN, 30KN, 50KN. 70KN, 100KN (Optional)
- Indication error
- ±0.5%
- Test speed
- 0.001-500mm/min, can set by computer, with up & down fast adjustment button of grips
- Force unit switch
- Kgf, N, Ibf, g, ton, Mpa
- Display
- Computer display mode
- Stop mode
- Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function
- Machine drive
- Servo motor drive, synchronous wheel and precision ball screw drive
- Power supply
- AC 220V 5A 50Hz
- Category
- Packaging Machinery in China
- Subcategory
- Packaging testing equipment
- Subcategory 2
- Paper and packaging testing equipment
- Listing ID
- 61053141
Description
Paper And Packaging Material Testing Instruments Manufacturers Suppliers

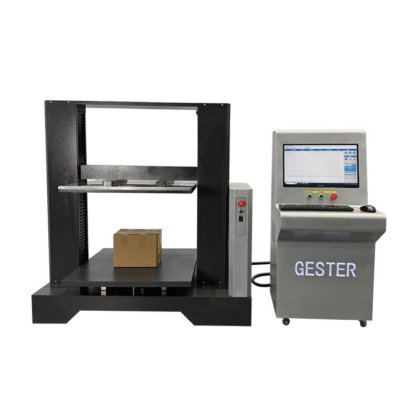

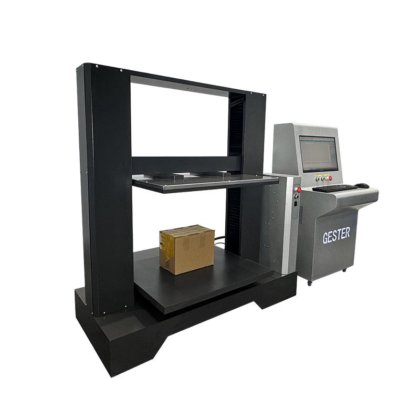

Box Compression Tester (Computer Model) GT-N02B
1.packaging compression tester Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers.
2.Can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters.
3.Box Compression Testing Machine Can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.
Strength test
