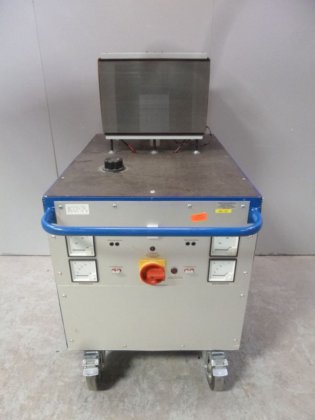

Betschart Swiss Transformer Core Testing System KPA 15 Isolating Transformer Test Core Testing System in Borken, North Rhine-Westphalia, Germany
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 20560
- Age rating
- No age restrictions
- Country of manufacture
- Germany
- Content
- 1 piece
- Input voltage
- 2 x 400 V – 50/60 Hz
- Input current
- 38.3 A maximum
- Output voltage
- 0 … 230 V
- Output current
- 65 A maximum
- Measurements
- Moving iron voltmeter 0 … 500V for input voltage
- Laboratory sockets for external voltage measurement directly, 1
- 1
- Manufacturer price
- €27,000 gross
- Category
- Transformers in Germany
- Subcategory
- Industrial supplies
- Subcategory 2
- Measurement & testing technology
- Subcategory 3
- Electronics & electrical engineering
- Listing ID
- 61362742
Description
Function

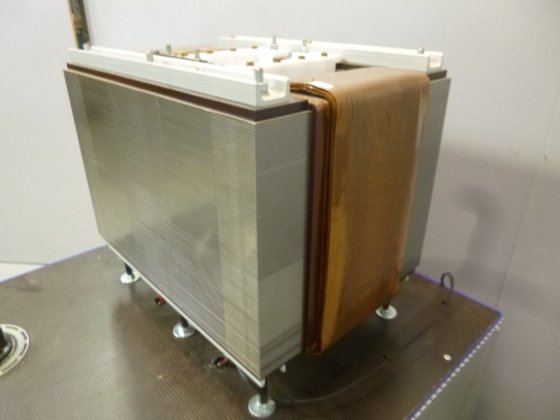

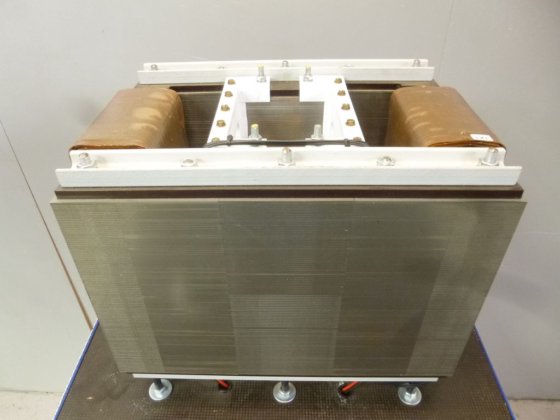

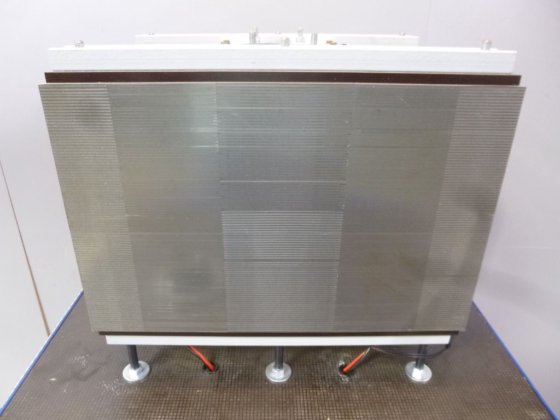

The output voltage, which can be continuously adjusted manually using a rotary knob, is fed directly to the excitation coils of the test core.

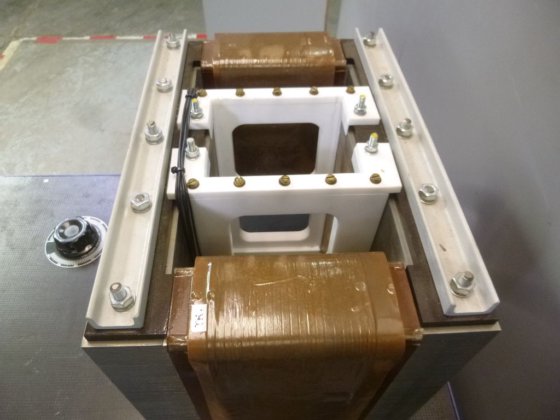

This is intended to create the most homogeneous electromagnetic field possible in the air gap of the test core, which can be used to characterize the core material inserted into the air gap.

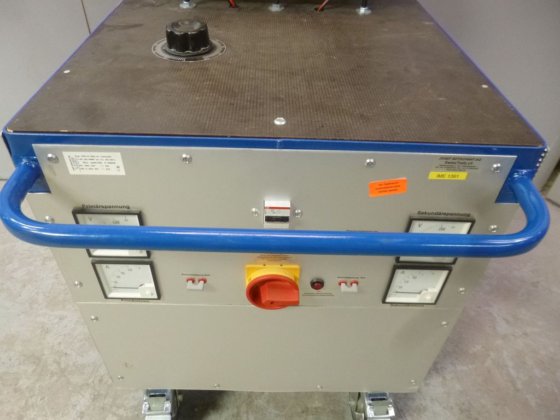

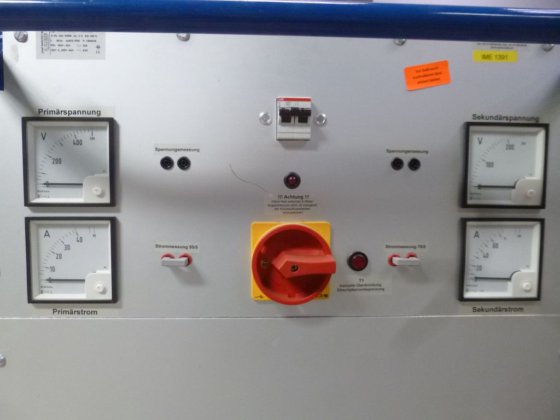

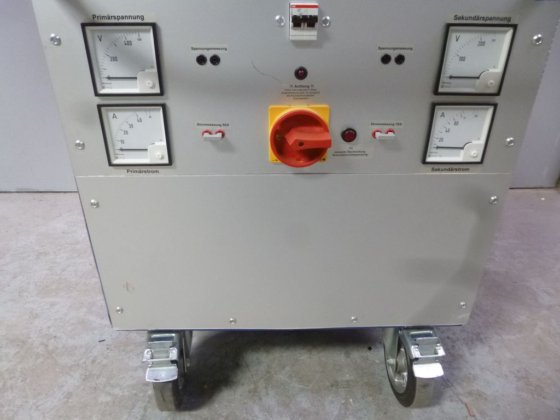

The basic operation of the core testing system is carried out via the switching and display elements on the front panel at the front of the test carriage.
Technical Specifications
Moving-iron voltmeter 0 … 250V for output voltage
Moving-iron ammeter 0 … 40/80A for input current
Moving-iron ammeter 0 … 75/150A for output current
2-pole circuit breaker, 63A characteristic B
Voltage measurement: output voltage
Current measurement: output current
Voltage measurement: input voltage
Current measurement: input current
Laboratory sockets for external current measurement, current transformer 50A/5A
Current measurement: current transformer 75A/5A, output side
Main and emergency stop switches
Suitable variable transformers can be found in our shop
