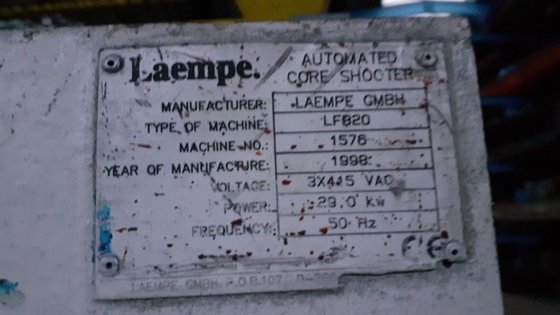

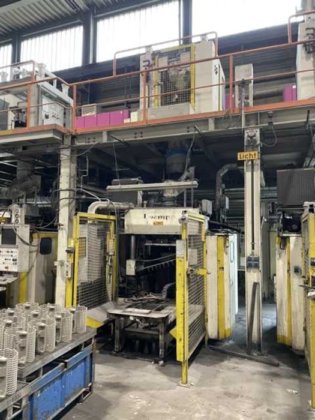

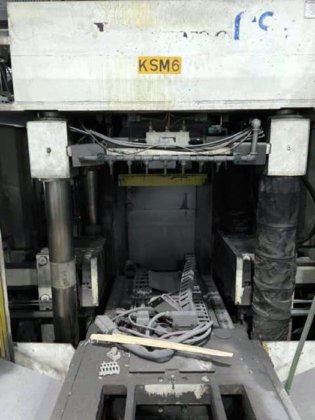

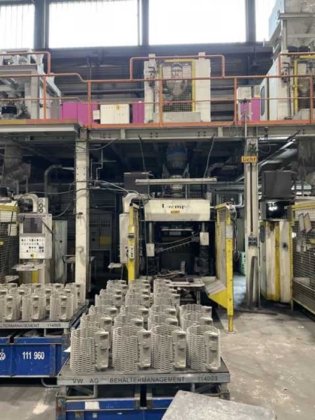

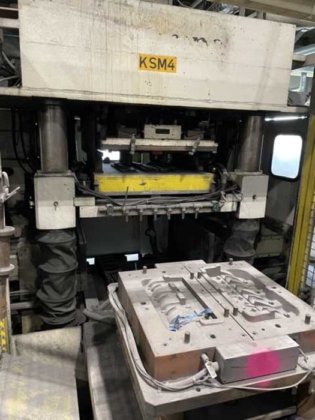

1998 Core shooter LAEMPE with core mixer LAEMPE SM6_3 in Amel, Wallonia, Belgium
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 1998
- Stock number
- 9000003070
- Shooting capacity
- 20 l
- Hydraulic force exerted by side clamps
- ±63 daN
- Hydraulic force exerted by table cylinder
- ±16000 daN
- Required release force of side clamp vacuum
- ±960 daN
- Capacity of vacuum pump
- 25 m³/h
- Maximum vacuum pressure
- - 0,8 bar
- Stroke of machine table
- ±500mm
- Stroke of side clamp cylinder
- ±300mm
- Stroke of ejector
- ±100mm
- Distance between side clamps
- 800mm
- Total weight of machine
- ±11 000 kg
- Maximum core box width, vert./horz. parted
- 350mm/750mm
- Maximum depth
- ±900mm
- Maximum height
- ±400mm
- Maximum width (vertically parted)
- ±200mm
- Minimum height, 2/3 parts, vertical and horizontal
- ±375mm
- Minimum height, 4 parts, vertical and horizontal
- ±375mm
- Maximum weight of core box
- ±1200 kg
- Maximum weight of upper of core box
- ±400 kg
- Necessary exhaust capacity of cabin
- approx. 3500 m³/h
- Air consumption at constant use with 6 bar
- approx. 7 m³/h
- Total power
- 29 kW
- Maximum rated pressure
- 160 bar
- Volume of oil tank
- 250 l
- Recommended hydraulic oil
- HLP-46
- Water cooling
- standard
- Make
- LAEMPE
- Weight
- ± 3000 kg
- Dimensions
- length 3000 mm, width 2000 mm, height 3100 mm
- Motor
- 7,5 kW, 400 V, 50 Hz
- Control voltage
- 24 V
- Capacity
- ± 2,5 t/h
- Category
- Foundry & Casting in Belgium
- Subcategory
- Shop
- Subcategory 2
- Foundry machines
- Listing ID
- 66597320
Description

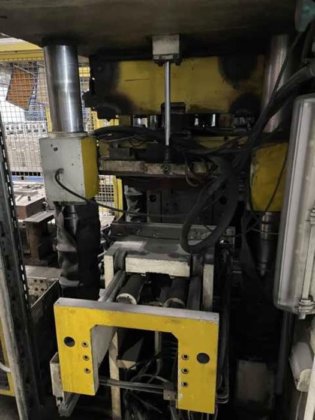

Hydraulic clamping of core boxes on the table
Upper part regulated over end switch
Table lift and side clamping via electronic path measuring system

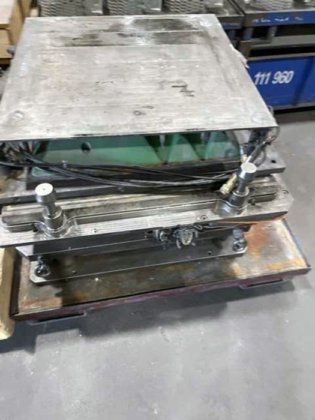

Core box dimensions and weights
Maximum gassing area with gassing manifold (alu): 580mm x 700mm
Optional: gassing area with gassing hood and integrated cope eject plate
Optional: shoot head, shoot area (max. 4bar gassing pressure possible): 550mm x 650mm
Times (without gassing, shoot and exhaust times)
Machine cycle time: horizontal core box: 20 sec
Machine cycle time: vertical (+ horz.) core box: 22 s
Manual core box change, horizontal tooling incl. shooting plate: approx. 6 min
Manual core box change, vertical tooling incl. shooting plate: approx. 8 min
Power consumption

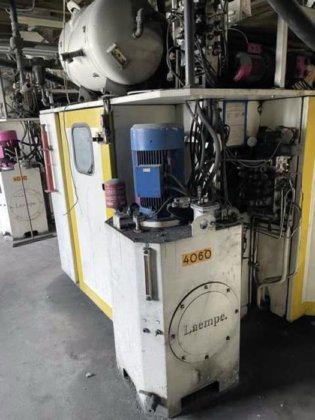

Hydraulic
Mixer
With sand bunker
With electric sand preheater with volumetric dosing
With bunker for dry additives
Resin and hardener dosing volumetric
