Beckman Coulter Biomek NXp Automated Liquid Handling Workstation A31841 in Cridersville, OH, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Serial number
- A318410148
- Mpn
- A31841
- Country/region of manufacture
- United States
- Intended use/discipline
- Biological Laboratory, Microbiological Laboratory
- Catalog no.
- A31841
- Environment
- Indoor use only
- Compressed air requirements nx-mc requires compressed airnx-s8 only span-8 instruments that use a microplate shaking alp require compressed air
- Air Pressure: 60 - 100 psi of compressed air414 - 690 kPa of compressed airAir Flow: 2.25 cfm @ 60 psi 0.064 m3/min @ 414 kPa
- System fluid requirements nx-s8 requires system fluid
- De-ionized or Distilled waterSystem fluid ambient operating temperature is 59°–86°F (15°–30°C).System fluid should be degassed for 24 hours prior to use.
- Weight
- 190 lbs. (86.2 kg)
- Ambient operating temperature
- 41°-86°F (5°-30°C)
- Humidity restrictions
- <85% (non-condensing) @ 86°F (30°C)
- Altitude restrictions
- up to 6562 ft (2000 m)
- Installation category
- Category II
- Pollution degree
- 2
- Sound pressure level
- Maximum sound pressure: 82 dBMaximum sound pressure at 1 meter away: 75 dB
- Fuses
- US: 250 VAC, 3.15 amp, 5x20 mm, Slow-blow, UL recognized, CSA certifiedEurope: 250 VAC, 3.15 amp, 5x20 mm, Slow-blow, CENELEC approved
- Communications to host
- RS-232 port
- Communications to tip loadernx-mc uses a tip loader
- CAN
- Communications to active alps via the biomex nxp instrument
- CAN
- Power requirements
- 100-240V, 4A, 50/60Hz
- Overall dimensions (wxdxh)
- 35 x 31 x 42"
- Subcategory
- Medical & lab equipment
- Subcategory 2
- Healthcare, lab & dental
- Subcategory 3
- Medical & lab equipment, devices
- Listing ID
- 68324365
Description
“Tested to initialize without issue. In good condition with some wear. Connects to software and carries out functions as directed. Includes PC, software, heating block with a controller, 90/200 multichannel head with gripper, accuframe tool and sensor, all required cables, and more.”

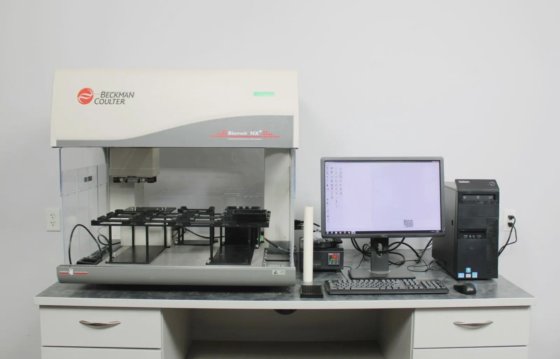

Beckman Coulter Biomek NXp Automated Liquid Handling Workstation
Successful Software Communication & Plate Movement
After connecting the NXp to the Biomek software, we performed the following tests:
- NXp initializes and communicates with Biomek software:
PASSED
- Home all of the motors:
PASSED
- Prime syringe pumps:
PASSED
- Aspirate/dispense fluids:
PASSED
-
Load/unload tips: PASSED
- Lift/move microplates:
PASSED
- Create/edit/remove programs:
PASSED
You Will Receive:
-
Beckman Coulter Biomek NXp Automated Liquid Handler
-

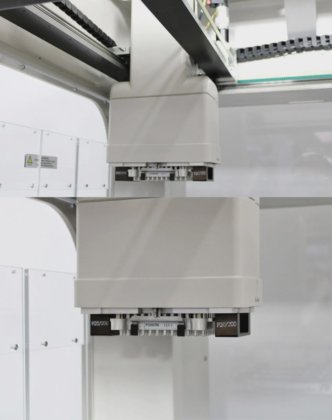

MultiChannel 96 P20/200 Head with Gripper
-
PC with software installed
-
Monitor
-
Mouse, keyboard
-
Tip loader
-

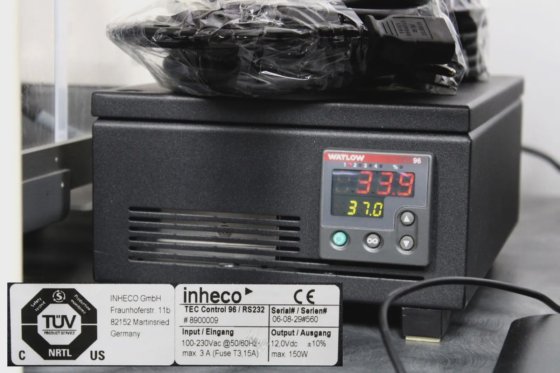

Heating block with controller
-
Accuframe sensor
-
Accuframe tool
-
$7,839 USD
