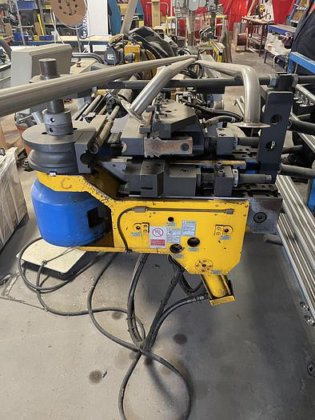

CHIAO SHENG MACHINERY TWO AXIS A50TNCPB SEMI AUTOMATIC 2" PIPE BENDER in Imlay City, MI, USA

STK#104786

=====================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

It is very suitable to the flexible production with less quantity, especially for the components which need multi bends on one tube. It is much more affordable than CNC 3 axes machine, nevertheless it is capable of multi- bends job as well.

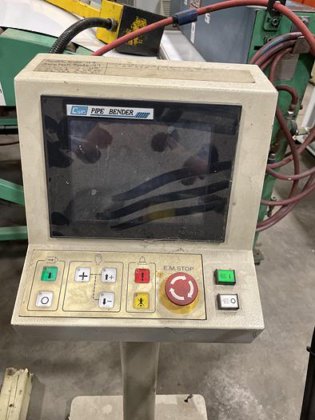

1.Touch screen PLC control with graphic display for friendly use and easy operation. Program is with storage of 100sets x 10 bends/set.

2.

(1) Feeding axis –adjust and fasten the position blocks manually as required.

(2) Rotating axis - servo motor drove and with digital programming.

(3) Bending axis – hydraulics drove and with digital programming.

3. In auto mode, the machine will automatically do the tube rotation and bending after operator move the carriage to the right position.

Specification : MACHINE MANUFACTURED IN TAIWAN

1. Max. bending capacity OD * WT: 50x3.0mm.

2. Useful mandrel length: 2100 mm.

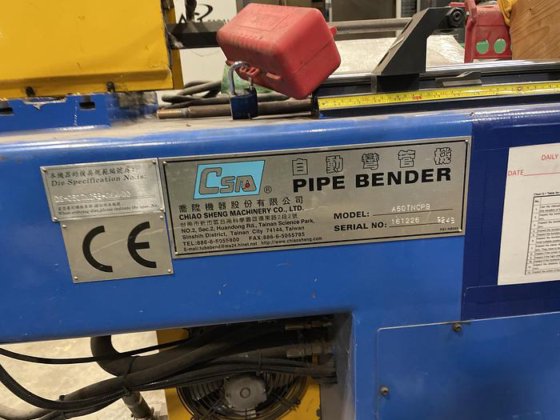

Chiao Sheng Machinery Co., Ltd.

Taiwan

General Info A50TNC-PB Hydraulic NC Tube Bender

Hydraulic NC Tube bender 50mm size

Semi-automatic 3 axis tube bender

Hydraulic driven chain C-Axis (Bend Arm)

Collet (B-axis) : Rotation by servo motor

Manual driven carriage (Y-axis) with optional Digital Read Out (DRO)

Pressure die assist (Follower Die)

Includes an air cooled hydraulic systems

Includes a set of mechanical stops

PLC controller with 10″ touch screen display

Memory storage of up to 1,000 part programs

Specifications: A50TNC-PB Hydraulic NC Tube Bender

A50TNC-PB-specs
