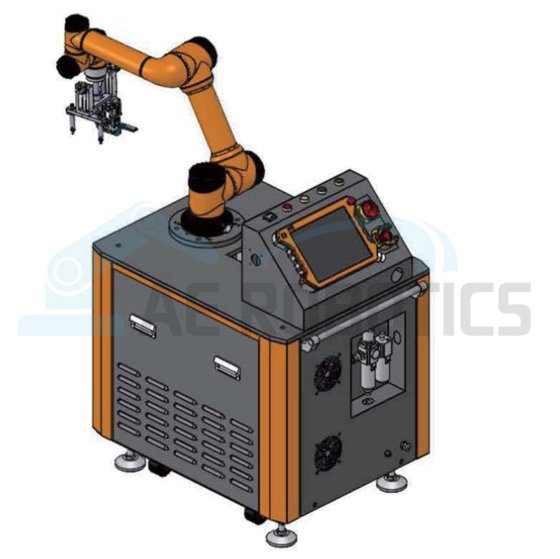

6-axis collaborative robot pick and place station for loading and unloading assembly testing Simple and efficient production in Shenzhen, Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Place of origin
- China
- Weight
- 350 kg
- Dimension(l*w*h)
- 900*700mm*1450mm
- Size
- 900*700*1450mm
- Load
- 5KG/ 10KG (optional)
- The scope of work
- 914MM/ 1350MM (optional)
- Io ports
- DI/O 16/16
- Communication method
- TCP/IP MODBUS TCP
- Operating voltage
- Single-phase 220V
- Power
- <500W
- Repeatability
- +/-0.02MM
- Weight (kg)
- 350
- Video outgoing-inspection
- Provided
- Machinery test report
- Provided
- Warranty of core components
- 1 Year
- Core components
- Gearbox motor
- Applicable industries
- Building Material Shops Machinery Repair Manufacturing Plant Food & Beverage Factory Farms Restaurant Shop Printing Construction works Other
- Application
- Load / Other
- Category
- Industrial Robots in China
- Subcategory
- Manipulator
- Subcategory 2
- Material handling
- Subcategory 3
- Lifting, pulling & positioning
- Listing ID
- 74939521
Description
Intelligent Pick and Place Workstation
Intelligent Flexible Feeding Station
The intelligent flexible feeding station is based on a flexible vibration feeding system, a visual material selection and detection system, and a robot grasping system. It is suitable for special-shaped parts and various precise and easily damaged parts, and can identify the positive and negative directions of various bulk materials in sequence. into the specified location.
A flexible feeding platform that combines robots, vision, and flexible vibrating discs
Wide adaptability
Applicable to 99% of small parts in the factory, bulk material arrangement and feeding
High versatility
Strong versatility to meet the feeding of most materials
Increase productivity
Cost-effective solution for converting manual operations into fully automated production lines
$30,000 USD
