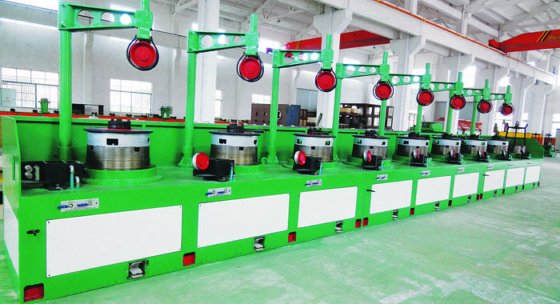

OTO Type wire drawing machine in Harbin, Heilongjiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Year
- 2023
- Serial number
- 021
- Stock number
- 1035
- Diameter of capstan(mm)
- 400-360
- Drawing dies(time)
- 9
- Maximum diameter of inlet wire(mm)
- φ3.0-φ2.5
- Minmum diameter of outlet wire（mm）
- φ0.9-φ0.7
- Total compression rate（%）
- 91
- Average compression rate（%）
- 23.5
- Maximum line speed(m/s)
- 12
- Motor power（kw）
- 7.5-11
- Dimension（mm）
- 9000*1650*2250
- Weight (t）
- 1.5
- Inlet wariable-frequency
- PLC control
- Category
- Wire Machinery in China
- Subcategory
- Wire drawing machine
- Subcategory 2
- Oto type wire drawing machine
- Listing ID
- 75486664
Description
We are one of the earliest manufacturers of this wire drawing machine in China.Main products include steel wire rod pre-treatment production line,rough wire drawing line ,fine drawing line, gas welding wire, arc welding wire production line of high speed winding machine.1.Rough wire drawing line:Duck pay-off frame(Overhead pay-off frame)→Brake→Mechanical wire descaling machine→acid picking and drying →boronation→LW560 variable frequency speed regulation OTO type wire drawing machine→GS630 Spool take-up machine (ZX600 Coiler).2.Fine wire drawing line:Spool pay-off machine(Rotation pay-off machine)→LW400 high speed OTO type wire drawing machine→GS630 Spool take-up machine.3.High speed winding:Spool pay -off machine(with damping)→Tension devioe→high-speed winding machine.
Services offered by seller
This seller offers new machines
This Seller offers repair & maintenance services
This seller offers spare parts
This seller offers transport & logistics
This Seller offers consultancy services
This seller can help you plan & execute entire projects
