ROBOTIC LASER WELDING & HOLE DRILLING CELL, USING AN ABB IRB 2400 robot / 2005 GSI Lumonics JK745TR nd Yag laser rated at 150J / 850 watts.ONLY 744 HOURS! in Michigan, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Stock number
- 104065
- Category
- Welding equipment in USA
- Subcategory
- Robots
- Subcategory 2
- Robotic laser cell
- Listing ID
- 78998955
Description
ROBOTIC LASER CELL, USING AN ABB IRB 2400 robot / 2005 GSI Lumonics JK745TR nd Yag laser rated at 150J / 850 watts.
ONLY 744 HOURS!
YEAR 2005
SN 24-28114
STOCK# 104065
BASIC SPECS:
==============================================================

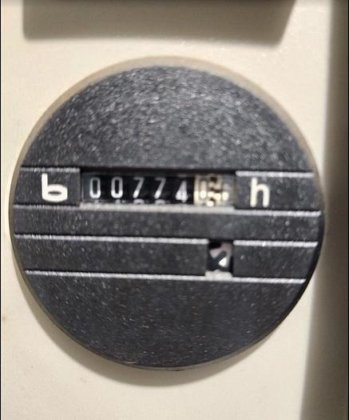

The system is complete with every available option from 2005, and is in like new condition with only 774 hours total!

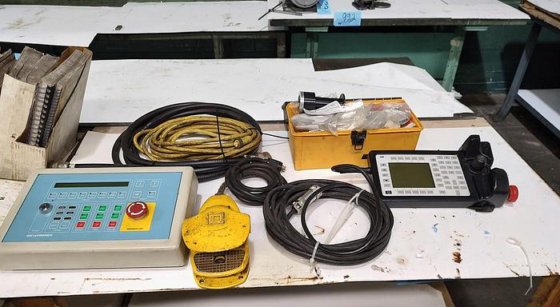

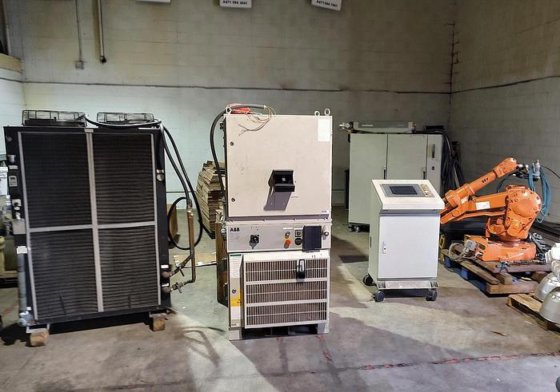

Comes complete with ABB irb2400 robot arm with S4CPlus controller, teach pendant,and all necessary wiring and cables as originally supplied by the manufacturer.

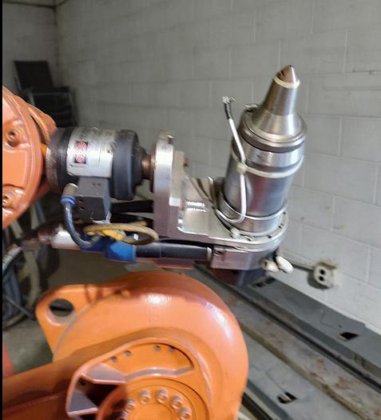

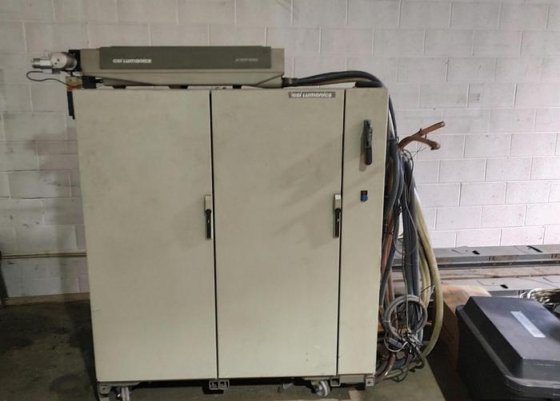

GSI Lumonics handled integration of their JK745 TR Nd Yag laser to work with the ABB S4CPlus controller. The laser and power supply are also like new, as previously stated, having a total of only 744 hours. Complete with an autofocus cutting head supplied by a fiber optic beam delivery (inspected and verified to be sound and in working order), Koolant Koolers chiller, with a handheld pendant as well as the optional pedestal control. The system also includes all spare parts and tools as originally supplied by GSI, as well as all of the literature for the robot,laser.cutting head, and chiller.
Robot Specifications
Axes: 6
Payload: 16kg
H-Reach: 1500mm
Repeatability: ±0.004mm
Robot Mass: 380kg
Structure: Articulated
Mounting: Floor, Inverted
Robot Motion Speed
J1 135 °/s (2.36 rad/s)
J2 135 °/s (2.36 rad/s)
J3 135 °/s (2.36 rad/s)
J4 330 °/s (5.76 rad/s)
J5 330 °/s (5.76 rad/s)
J6 400 °/s (6.98 rad/s)
Robot Motion Range
J1 ±360°
J2 ±200°
J3 ±125°
J4 ±400°
J5 ±240°
J6 ±800°
EQUIPED WITH:
S4C+ CONTROL
CABLES
TEACH PENDANT
