Acra AM2V 3HP Variable Speed Vertical Milling Machine Pwr Feed DRO Tooling 1996 in Pawtucket, RI, USA
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Category
- Milling Machines in USA
- Subcategory
- Process engineering equipment
- Subcategory 2
- Cnc, metalworking & manufacturing
- Listing ID
- 79282982
Description
Gold Machinery Group
-----------------------------------------------------------------------------------------
We are pleased to offer you...

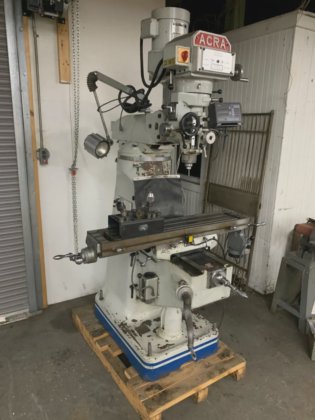

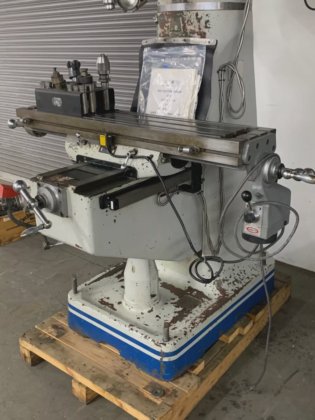

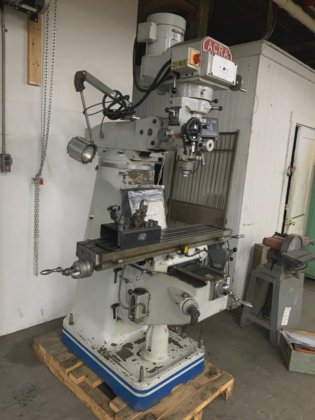

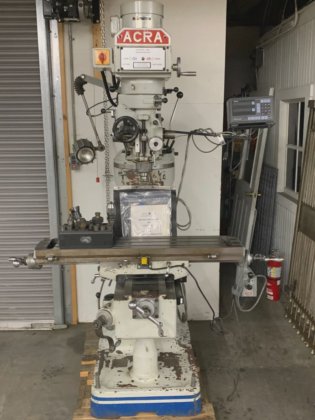

Acra AM2V 3HP Variable Speed Vertical Milling Machine - Power Feed, DRO, Tooling
Our Inventory Number:
4467-470
Technical Specifications:
Date of MFG 1996
Voltage: 220/440V AC/3PH
Wired 220
Table Size: 9" x 42"
Longitudinal Travel (X Axis): 30"
Cross Travel (Y Axis): 12 1/2"
Vertical Knee Travel (Z Axis): 16"
Over Ram Travel: 12 1/4"
T-Slot Number , Size: 3 , 5/8"
Spindle Motor: R-8 or #30 Taper
Spindle Speed: Inf. Vari
Spindle RPM: 65~4,200 RPM
Quill Diameter: 3 3/8"
Quill Travel: 5"
Main Motor: 3HP
Net Weight: 2,200 LBS
Dimension W.x L. 54" x 48"
Equipped with:
L. to R. Power table feed

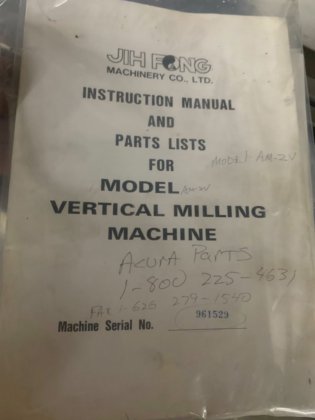

Original owner & parts manual
Mitutoyo model KA - D.R.O.
R8 Collets Holders, Jacob Chuck , Boring/cutting attachments as photographed
We will load your truck from our adjustable loading dock for free.
$5,950 USD
