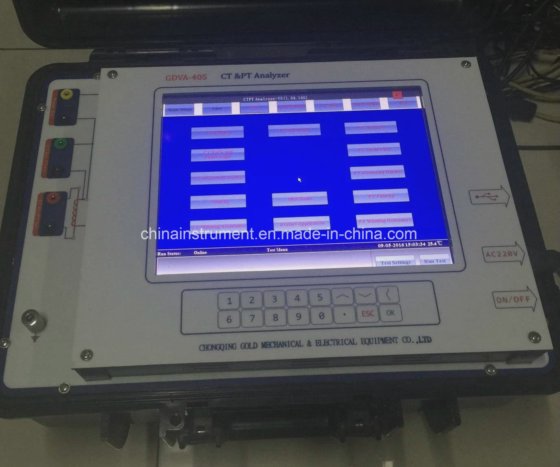

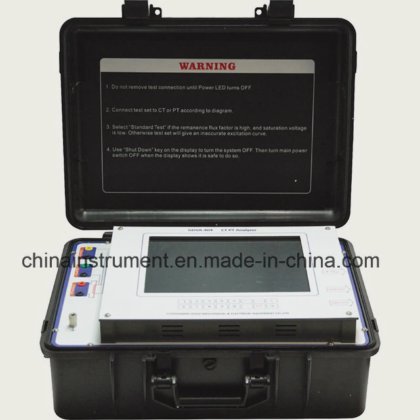

Class 0.02 Portable Current Transformer Testing CT PT Analyzer for Metering and Protecting Transformer Testing in Chongqing, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Lifetime Technical Support,Online Service
- Test standards
- IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C5
- Current output
- 0.001~5A(RMS)
- Voltage output
- 0.1~180V (AC)
- Current measurement
- Range: 0~10A (Automatically Change Range in 0.1/0.
- Power output
- 500va
- Max. knee voltage measurement
- 45kv
- Current measurement error
- <±0.1%+0.01%Fs
- Voltage measurement error
- < ±0.1%+0.01%Fs
- Turn ratio measurement
- 1~30000
- Product name
- CT PT Analyzer
- Transport package
- Wooden Case
- Hs code
- 9031809090
- Production capacity
- 100PCS/Month
- Category
- Transformers in China
- Subcategory
- Analysis instrument
- Subcategory 2
- Instruments & meters
- Subcategory 3
- Analysis instruments
- Listing ID
- 81605808
Description
Class 0.02 Portable Current Transformer Testing CT PT Analyzer for Metering and Protecting Transformer
Application:
Tests for current transformer:
Excitation curve and parameters test
Turns ratio test
Ratio and phase error test
Polarity mark check
Winding resistance measurement
Secondary loop burden measurement
Error line curve test for protection CT
Transient CT parameters test
CT nameplate guess
Saturation hysteresis loop curve measurement
Tests for Potencial Transformer:
Turns ratio test
Ratio error and phase angle error test
Polarity test
Secondary burden test
Winding resistance test
Applications of CT/ PT Analyzer:
CT nameplate check
CT parameters check in work burden
CT transient parameters analysis
CT ratio and phase error calibration
PT routine test
Specifications
:
Item Name
Class 0.02 Portable Current Transformer Testing CT PT Analyzer for Metering and Protecting Transformer
Test standards
IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C57.13
Power supply
