HangJi Vertical Loop & Side Loop for Rebar Making Line in Xi'An, Shaanxi, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Customized
- Customized
- Power source
- Electric
- Automatic grade
- Automatic
- Certification
- ISO, CE, SGS
- Packaging
- Seaworthy Packing or as Customer′s Request
- Size
- According to
- Name
- Loop
- Transport package
- Seaworthy Packing or as Customer′s Request
- Specification
- ISO; SGS
- Hs code
- 8455213000
- Production capacity
- 20 Sets Pear Month
- Category
- Foundry & Casting in China
- Subcategory
- Metallurgy machinery
- Subcategory 2
- Manufacturing & processing machinery
- Listing ID
- 81616503
Description

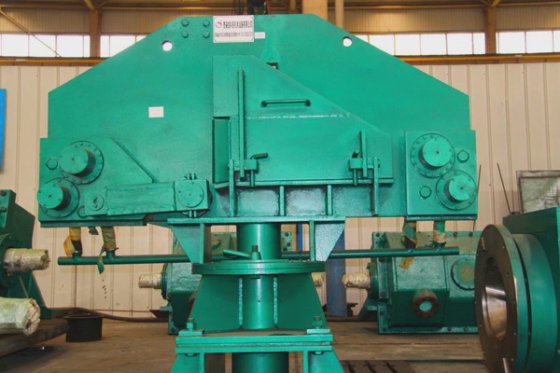

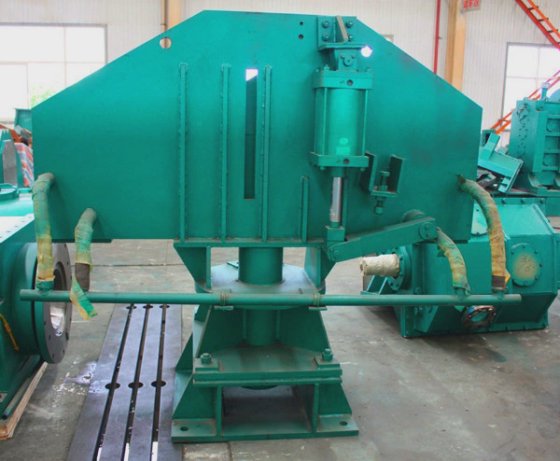

Vertical loop:
1.T
he effect of Vertical loop:
wire-rod has the problem of
the dynamic tension fluctuation caused by interference
when it is in the process of rolling, so it lead to the fluctuation of the dimension of the rolling element,
vertical
loop can eliminate part of the tension fluctuation to make sure the precision of the equipments.
The structure of
Vertical loop:
Vertical loop is composed of sets of roll(it is pushed by cylinder), back-up roll and loop groove.
The sets of roll
used
to form cover.
Side-wall is used to support the element to form the loop.
Loop
adopt the
central pole mount,
which is
easy to turn on
and
adjust the mill guide and guard
The diameter of sets of roll cylinder is
Φ
160mm; distance is 200mm.
The working
a
l
titude
of loop is 100mm higher than the rolling centre line.
The highest altitude of loop is 400mm higher than the rolling centre line.
3, Lubrication and
pneumatic
:
The transmission parts of loop adopt glycerol manual lubrication.
