Automatic Open Time and Close Time Testing Circuit Breaker Test Analyzer in Chongqing, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Lifetime Technical Support
- Apparatus
- High Voltage Circuit Breaker Analyzer
- Application
- Portable Circuit Breaker Analyzer
- Function
- IEC62271 Circuit Breaker Analyzer
- Device
- High Precision Circuit Breaker Analyzer
- Test standard
- IEC62271
- Time measurement range
- 6000ms, Resolution 0.1ms
- Speed measurement
- 0m/S~20m/S
- Coil current measurement
- Range 20.00A, Resolution 0.01A, Error 2%+0.2%Fs
- Closing resistance value measurement
- Range: 100~10000ohm, Error: 5%Rdg
- Dc power out
- DC30V~250V/20A (Instantaneous)

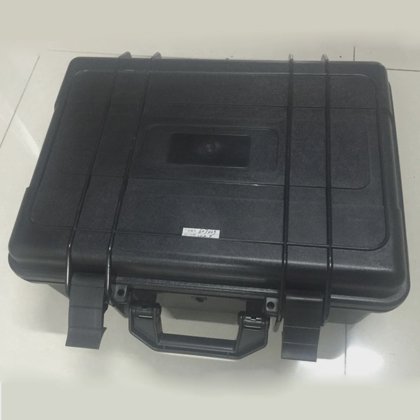

- Transport package
- Wooden Case
- Specification
- 360*280*300mm
- Hs code
- 9030820000
- Production capacity
- 100 Sets/Month
- Category
- Circuit Breakers in China
- Subcategory
- Test instrument
- Subcategory 2
- Instruments & meters
- Listing ID
- 81625775
Description

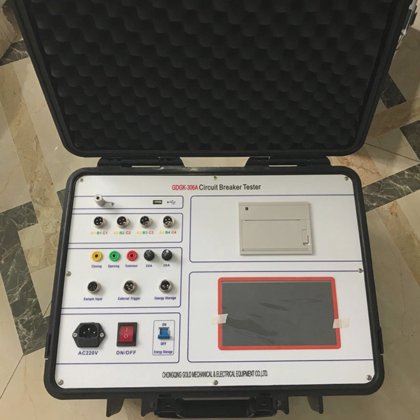

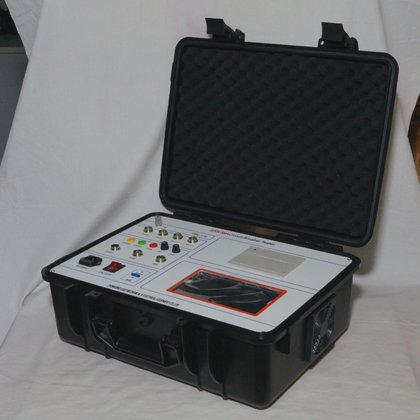

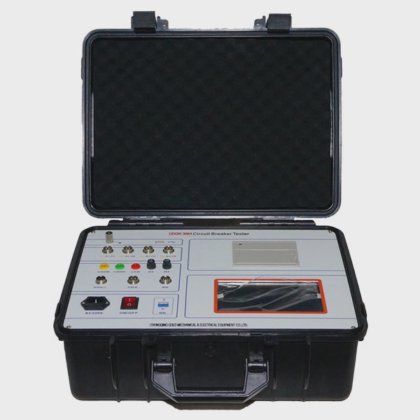

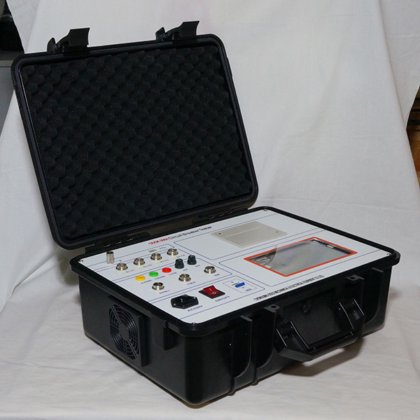

GDGK-306A Automatic Open Time and Close Time Testing Circuit Breaker Test Analyzer
Introduction:
» GDGK-306 Circuit Breaker Analyzer is special instrument for power system GIS mechanical properties measuring.
» GDGK-306 Circuit Breaker Analyzer takes ARM7 for the core to process the test data. With high intelligence, lots of functions, accurate test data, strong anti-jamming, easy operation, small size, light weight and so on.
» GDGK-306 Circuit Breaker Analyzer is applicable to kinds of GIS mechanical properties measuring such as indoors or outdoors switches with less oil or more oil, vacuum switches, sulfur hexafluoride switches and so on.
Main Functions:
1
Test standard: IEC62271
2
Closing and opening time measurement of 12 channels
3
Max difference of closing or opening time measurement of three phases
4
C-O and O-C time measurement
5
Rated operation sequence test
6
Bounce time and frequency measurement of breaker closing
7
