Computer Numerical Control Wire Bending Machine in Heilongjiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Application
- Metal
- Process usage
- Metal-Forming CNC Machine Tools
- Movement method
- Contour Control
- Control method
- Open-Loop Control
- Numerical control
- CNC/MNC
- Performance classification
- High-End CNC Machine Tools
- Specification
- SGS
- Production capacity
- 300sets
- Category
- Bending & Forming in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 81689668
Description

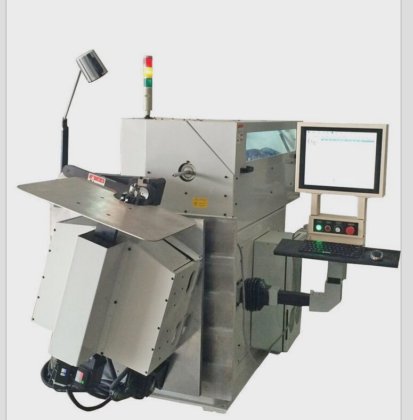

CNC wire bending machine
1. Bendable φ 6mm wire (low carbon steel).
2. The maximum bending angle of 190 ° .
3. The maximum bending radius R20mm.
4. Maximum bending cycles unlimited.
5. Standard feed length 1000mm.
6. The maximum angle of 360 ° .
7. The maximum feed speed 700mm / sec.
8. Precision: Bending accuracy ± 1 ° , feeding accuracy ± 0.05mm, rotation accuracy ± 0.05 ° .
9. The machine body can store 10, 000 kinds, but comes with a USB interface, so that customers easy to use.
10. Comes with diagnostic function test abnormalities will alarm.
11. The drive is fully pneumatic.
12. The three-axis, using AC servo motor.
13. Electrical Capacity: 3-phase 380V, 3.0kVA, with power self-protection (circuit breaker Mitsubishi) to prevent data loss.
14. Compressed air consumption: 60L / MIN, 0.6MPa.
15. XY Z coordinate input and motion data input comes with a graphical display.
16. The device is available M20 expansion screws, two each front and rear.
17.
