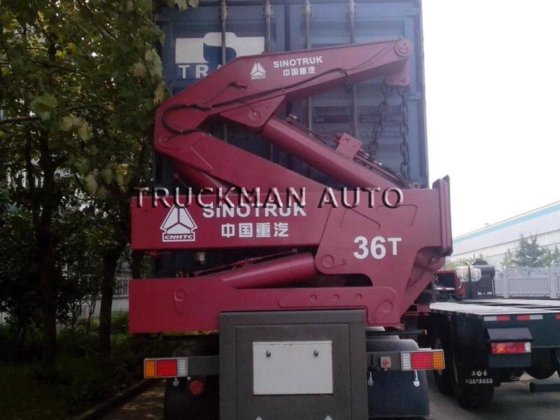

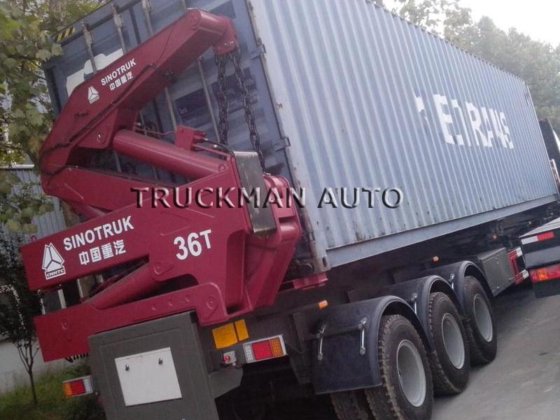

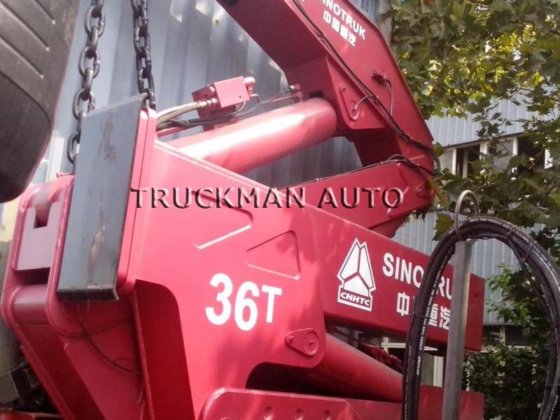

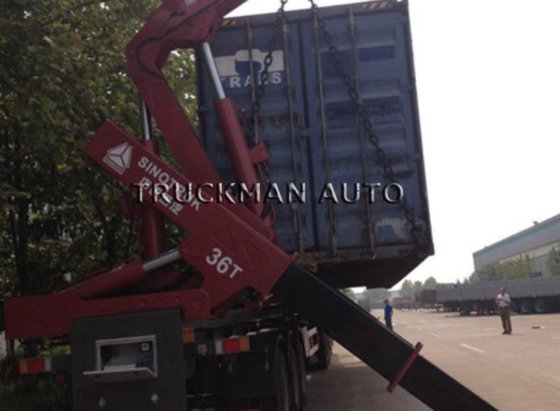

36 Tons 37 Tons 40FT Container Side Lifting Loader Trailer in Jinan, Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Stock number
- TKM367CSLT
- Max. stabiliser outreach
- 3200mm
- Max. working range
- 4000mm
- Overal height
- 2490mm
- Overal width
- 2500mm
- Overal length
- 1020mm
- Tare weight
- 7000kg
- Dimension
- 12.5m×2.5m×4m (Outside)
- Crane lifting capacity
- 37 tons
- Frame
- Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
- Axle
- 3 axles, BPW/FUWA/HJ brand
- Landing gear
- JOST E100. 28T
- King pin
- JOST 3.5 inch bolt-in king pin
- Suspension
- Mechanical suspension/Germany or America type/air suspension
- Leaf spring
- 120mm(W)*16mm(T)*10 Layer
- Braking system
- WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
- Tire
- 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
- Voltage
- 24V
- Category
- Trailers in China
- Subcategory
- Container side loader trailer
- Listing ID
- 82646334
Description
The container self lifting trailer is popular for the no lifting capacity terminal, warehouse. With quickly operating time.
The container self lifting trailer is popular for the no lifting capacity terminal, warehouse. With quickly
operating time. TRUCKMAN brand container self llifting trailer is work with XCMG, the chassis is design
by TRUCKMAN and crane adopt the XCMG brand MQH37A model, with the low purchase cost and durable
quality. It's export to many countries, such as Djibouti, Fiji, Tanzania, Ghana etc. According to our customers
feedback, now we also design the trucks with self lifting crane, contact us get more details.
XCMG MQH37A Crane Specification.
Max. lifting capacity:
37000kg
Max. pressure of hydraulic system: 28Mpa
Main Specification For The Container Side Loader Trailer
Upper and lower plate is 18mm, middle is 8mm. height is 500 mm
