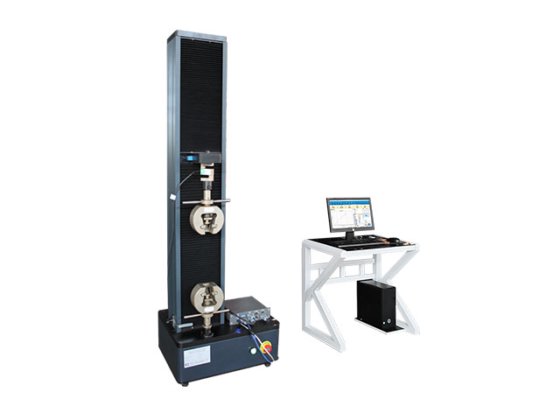

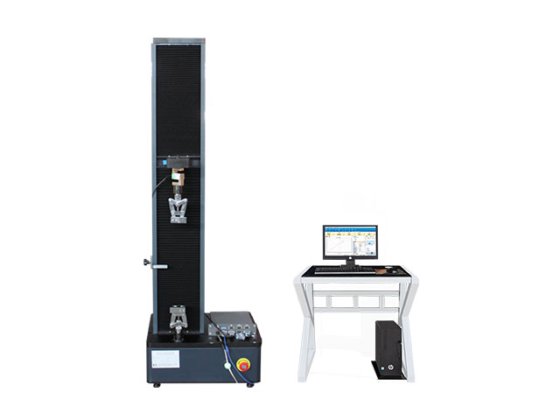

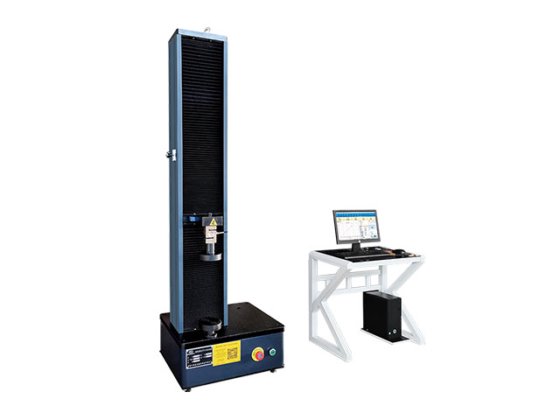

Electronic universal testing machine in Jinan, Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Max. load
- 1/2/3/5kN
- Structure
- Single Column Double Spaces
- Control method
- Computer Control
- Load range
- 2%~100% FS
- Displacement resolution
- 0.01mm
- Test speed
- 0.05~500mm/min
- Tensile space
- 600mm (Can be customized)
- Compression space
- 600mm (Can be customized)
- Power supply
- AC220V±10%, 50Hz (Can be customized)
- Grips
- Wedge Type, Plate Type And Other Grips As Customers’ Demand
- Dimension
- 425*400*1315mm
- Weight
- 200.00 kg
- Category
- Materials Testing in China
- Subcategory
- Electronic universal testing machine
- Listing ID
- 84807095
Description
It's used for small force test
It's suitable for tensile,compression, bending,cutting and other testings for non-metal materials.
Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standard:
ASTM, ISO, DIN, GB and other international standards.
Main Technical Parameters:
The Main Interface
There are many standards can be choosen
The curve of testing
The Test Report
