ADT horizontal torsion spring testing machine in Zhengzhou, Henan, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Stock number
- 10
- Parameter model
- ADT-500A
- Maximum test torque
- 500 mN.m
- Measuring range
- 5~500 (mN.m)
- Minimum reading (n.mm)
- 0.01 mN.m
- 2. angle resolution
- 0.1°
- 5, specimen length
- 150mm
- 6, loading method
- manual
- 7, accuracy
- ± 1%
- 8, power supply
- AC220V 50Hz
- 9. dimensions
- 710×320×290(mm)
- 10, weight
- about 37.5Kg
- Category
- Materials Testing in China
- Subcategory
- Test, lab, medical equipment
- Subcategory 2
- General laboratory equipment
- Listing ID
- 85669450
Description

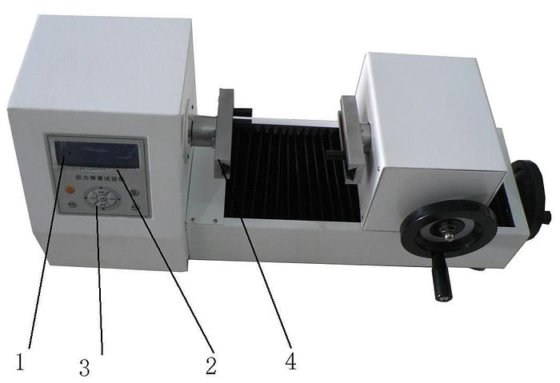

ADT horizontal torsion spring testing machine
Features:
ADT horizontal torsion spring tester is an intelligent multifunctional measuring instrument designed and manufactured for testing and testing various torsion springs. It can be used for torque test of torsion spring, coil spring and other elastic torsion parts of various shapes. It has the characteristics of simple operation, high precision, complete functions and convenient carrying. Widely used in various electrical, light industry, machinery manufacturing, scientific research institutions and other industries.
Main features:
1. High precision, high resolution, fast sampling speed, large screen display.
2. Upper and lower limits can be set, with sound and light alarm function
3. Three parameters are displayed (torque value, rotation Angle, spring stiffness).
4. The three units N·m, kgf·cm and Ibf·in are converted to each other.
5. Real-time, peak regulating, self-regulating three modes can be switched arbitrarily.
6. Peak hold, automatic release function, free set release time.
7. Automatic stop function, no operation, time can be set at will.
8. Large storage capacity, can save 99 groups of test data.
9. Automatic stop function, no operation, time can be set at will.
10. Built-in micro printer (optional).
11. USB interface and PC communication, can be connected with the computer for synchronous testing.
Details:
2. Angle resolution: 0.1°
3, measuring the range of rotation angle: 0~ ±9999.9°
4, the sample rotation diameter: φ100mm
5, specimen length: 150mm
6, loading method: manual
7, accuracy: ± 1%
8, power supply: AC220V 50Hz
9. Dimensions: 710×320×290(mm)
10, weight: about 37.5Kg
