AA4c Valve Grinding Machine Portable Boring Machine in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Processing accessory
- Centre CNC Lathe
- Guide rail
- Inclined Guide Rail
- Tool holder
- Double-tool Holder CNC Lathe
- Power source
- Electric
- Controlling mode
- Artificial
- Automatic grade
- Semiautomatic
- Setting mode
- Table
- Precision
- High Precision
- Certification
- CE
- Transport package
- Plywood Case
- Production capacity
- 10 Units/Month
- Category
- Automotive Equipment in China
- Subcategory
- Lathe
- Subcategory 2
- Machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 85715154
Description

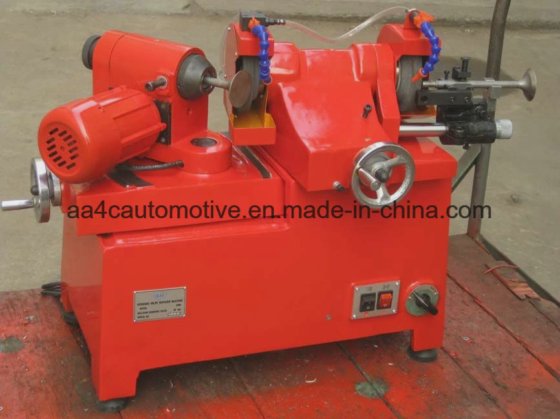

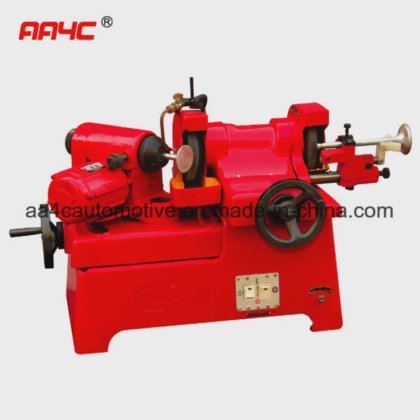

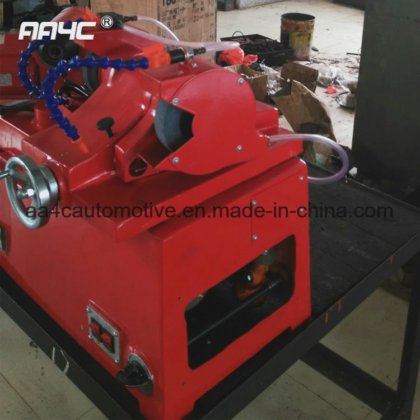

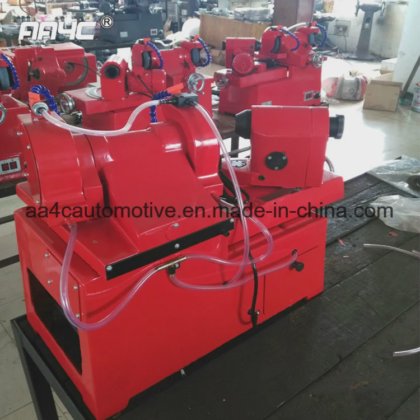

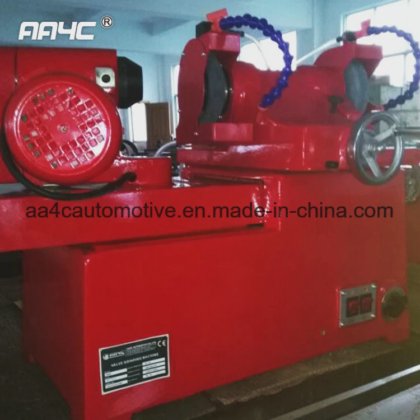

AA4C Valve Grinding Machine Portable Boring Machine
Specification Unit
1 Max. Grinding diameter (mm) Φ 90
2 Standard part: Valve axle diameter (mm) Φ 6-Φ 16
Optioinal part: Valve axle diameter (mm) Φ 4-Φ 7
Optioinal part: Valve axle diameter (mm) Φ 12-Φ 18
Grinding angle Degree(° ) 25° ~ 60°
Longitudinal slide travel of work head (mm) 120
Cross slide travel of wheel head (mm) 95
Max. Grinding depth (mm) 0.025
Wheel head main spindle speed /(rpm) 4500
Car head main spindle speed /(rpm) 125
Wheel head motor
: Item No. YC-Y7122
Power (kw) 0.37
Voltage (v) 220
Frequency (Hz) 50/60
9
Speed /(rpm) 2800
Car head Motor
Item No. JZ5622
Power Kw 0.09
Voltage (V) 220
10
Frequency (Hz) 50/60
11 N. W/G. W (kg) 95/115KG
12 (**) Overal size (cm) 68*60*60
13. Packing size (cm) 87× 64× 72
