2017 CMZ Type TA 15 MS - 640 CNC lathe turning machine - twin spindle in St-Chamond, Auvergne-Rhône-Alpes, France

Year 2017

CN Fanuc 32iTB with 15'' touch screen and new iHMI interface

Standard hydraulic cylinder on main spindle (TA 15 Autoblok VNK 130-52) with collet holder DIN 6343 n° 177E diam 52 mm max.

Main spindle rotation speed 6,000 rpm

Spindle inner diameter 61 mm

Z = 640 mm / distance between centers 730 mm

Max diameter on bench 760 mm

Max diameter. on trolley 600 mm

Maximum turning diameter 460 mm

X-axis travel = 310 mm

Z axis travel = 640 mm

B axis travel = 640 mm

Fast on X and Z = 30 m/min

Rapids on B = 30 m/min

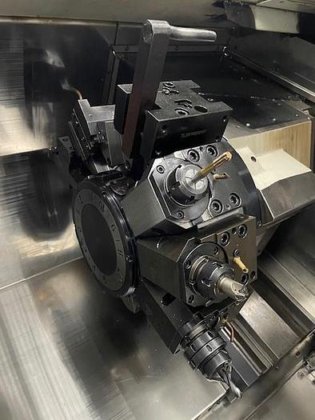

12-station auto turret with 12 motorized tools

Rotation speed rotating tools 12,000 rpm

Power of rotating tools max. 11.3 kW / and 8.1 kW in S1

Spindle maximum rotation 4500 rpm, power 14 kW maximum, with collet holder Hainbuch Spanntop nova AXFIX 52 n° 2703/0006

Renishaw HPRA measuring arm (probe)

Machine weight approximately 6 T

Spindle center coolant and 6 bar high pressure pump

Bar feeder IEMCA Boss 552/32 HD HEAVY DUTY loading robot.

Dual chain rear chip conveyor

Metered usage time 14536 hours

Machining time on the counter 5000 hours

FR

CNC lathe CMZ twin spindles with milling

Slant bed twin spindles with driven tools live tooling

Type TA 15 MS – 640

Year 2017

CNC Fanuc 32iTB

Hydraulic standard cylinder on main spindle (TA 15 Autoblok VNK 130-52).

Z = 640mm / distance between centers 730mm

Bar loader / bar feeder IEMCA Boss 552/32 HD HEAVY DUTY - Robot loader.

Cutting time 5000 hours

Using time 14536 hours
