Cold Solvent Glue PVC Veneer Profile Wrapping Machine UPVC Wall Panel Frame Profile Wrapping Machine Laminate Machine in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- One Year
- Classification
- Cold Laminating Machine
- Application
- Particle Board, Plywood, Aluminium Plate, Film Material
- Driven type
- Electric
- Automatic grade
- Semi-Automatic
- Membrane material
- PVC Film
- Plastic film mulching modes
- Hot Laminating
- Performance
- Anti Wrinkle
- Max. working width
- 300mm
- Working speed
- 1-20m/Min
- Glue
- EVA Hot Melt Glue
- Film
- PVC Film
- Weiht
- 1800kgs
- Transport package
- High Quality PE Film
- Specification
- 6000*1200*1800mm
- Hs code
- 8477409000
- Production capacity
- 150set/Year
- Category
- Packaging Machinery in China
- Subcategory
- Packing machinery
- Subcategory 2
- Laminating machine
- Subcategory 3
- Packaging & printing
- Subcategory 4
- Cold laminating machine
- Listing ID
- 85929570
Description
Product Description

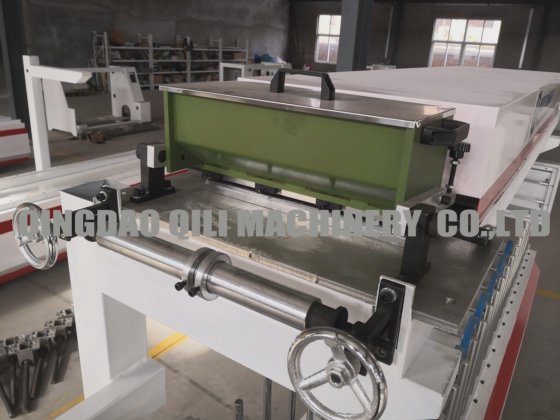

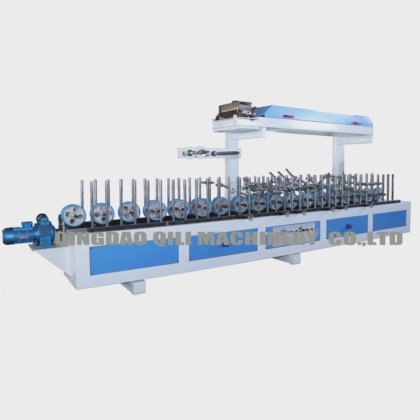

QL300BF-E cold glue profile wrapping machine

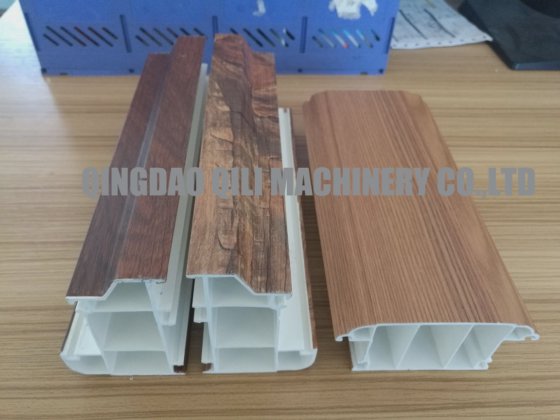

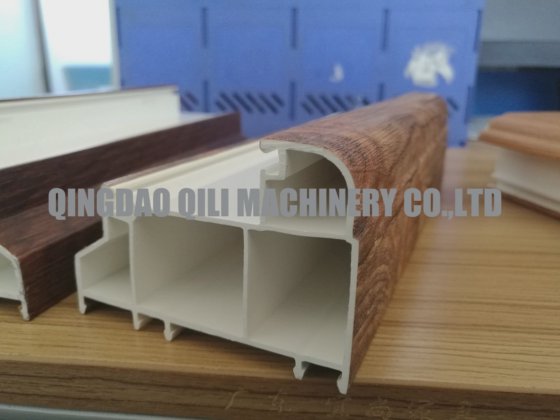

This machine is special for Wrapping PVC / leather /aluminum foil MDF, particle board, plywood ,PVC ,WPC ,aluminum, plastic steel.And it is mainly for different angles, ARC, roughness and the edges to get excellent performance.
Technical parameters
QL300BF-E cold glue profile wrapping machine
Item
QL300BF-E
Conveying system
warm and gear
Max. working width
300mm
Max. working thickness
90mm
Shortest working length
500mm
Conveying roller
2 groups
Conveying speed
1-25mm/min
Motor power
1.1kw
heating power
8kw
Overall dimension
5800*1250*2000mm
Net weight
1600kg
Detail Information
QL300BF-E cold glue profile wrapping machine
1.Glue coating system is the scrape coating system for cold glue to work with PVC
can finish the surface, the sides and the bottom continuously with accomplished effectively.
3.
$4,800 USD
