2000 ABUS SDK VS 406 in Leipzig, Saxony, Germany
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2000
- Stock number
- 1202047
- Type of control
- conventional
- Freight basis
- EXW, free on truck unpacked
- Storage location
- Leipzig 1 Außenbereich
- Lifting capacity
- 1,0 t
- Lift
- mm
- Span width
- mm
- Arm length
- ca. 5000 mm
- Height lower edge cantilever arm
- 3200 mm
- Cantilever arm length from center column
- 4500 mm
- Column diameter
- 406 mm
- Rotation
- 120° °
- Weight
- kg
- Crane classification
- DIN 15018 H2B3
- Dimensions l x w x h
- Ausleger: 7,6 x 0,66 x 0,37 m
- Category
- Overhead Cranes in Germany
- Subcategory
- Machinery
- Subcategory 2
- Pillar type swivelling crane
- Subcategory 3
- Generators, cranes, blasting etc.
- Listing ID
- 86221497
Description

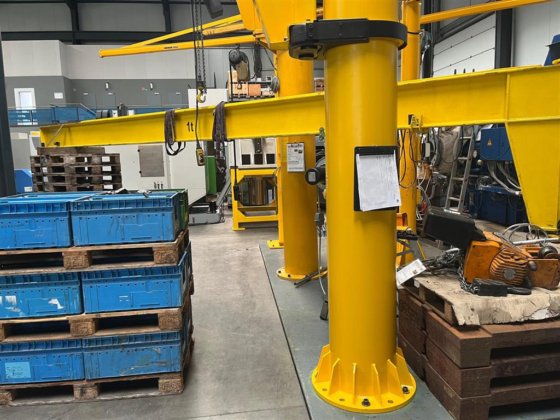

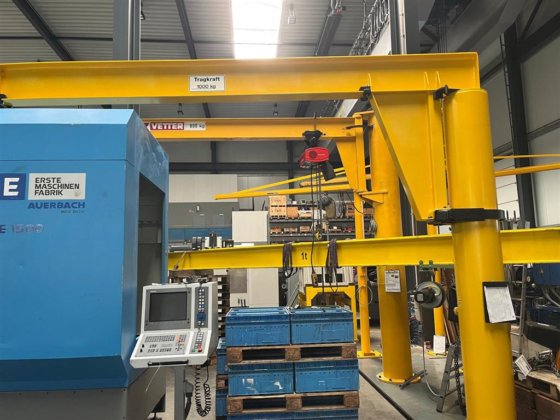

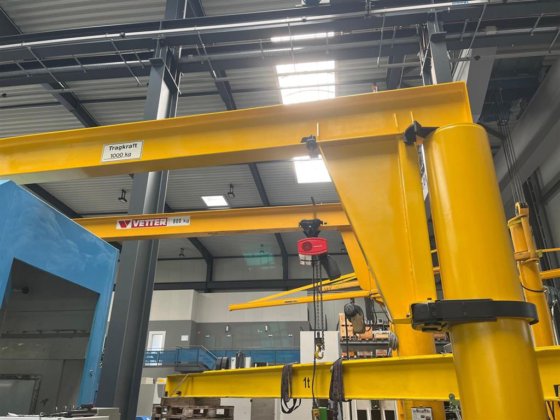

The slewing pillar crane consists of the following main groups:
Pedestal
boom (transport dimensions L: 7600mm x W: 660mm x H: 370mm)

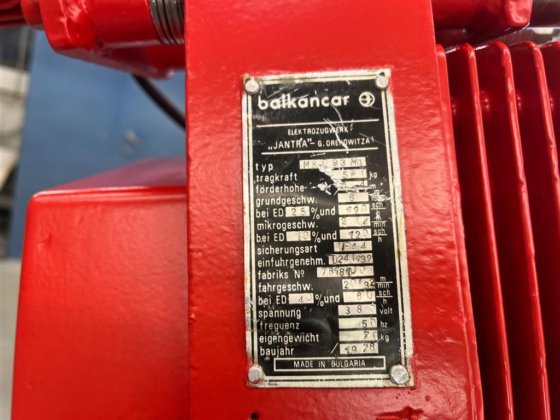

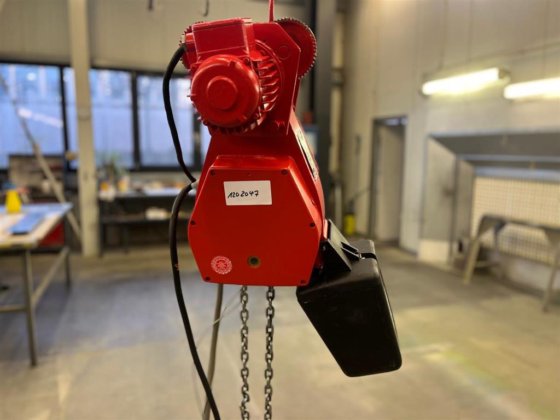

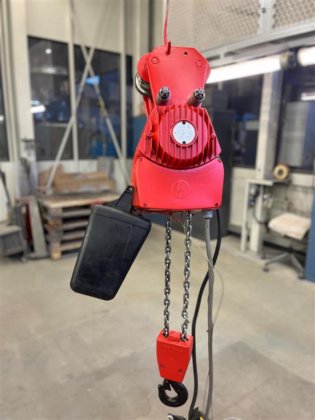

Hoisting gear: Balkancar type MB 093n, lifting height 4 meters; load chain type 7,2 x 21 double chain; hook/buckle with rope safety, pendant control
Type 071/53
Slewing operation manual
outreach column to crane hook = 4.000mm
height of column = 3.200mm; running width on jib = 180mm
Column base flange Ø 700mm; pitch circle Ø 520mm, 12 holes Ø 31mm
