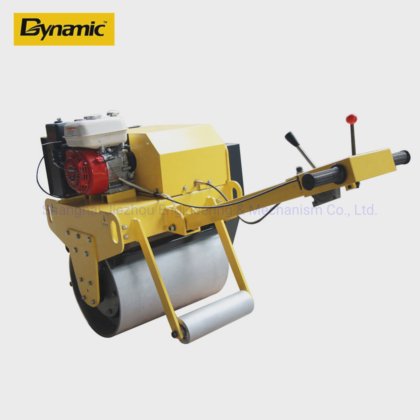

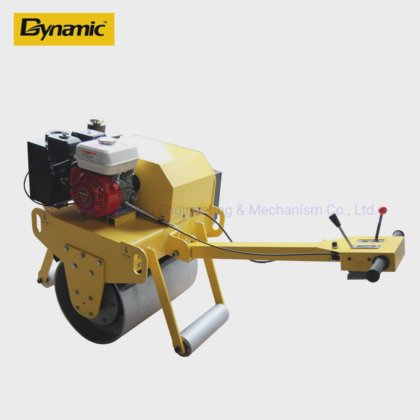

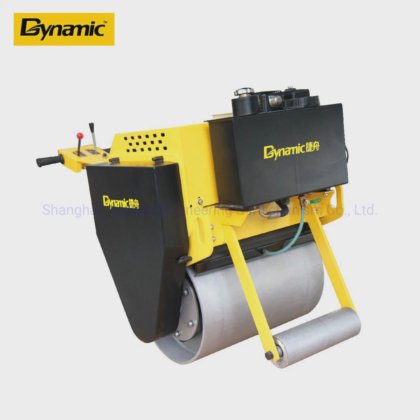

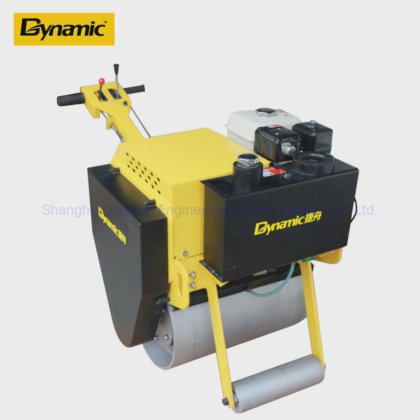

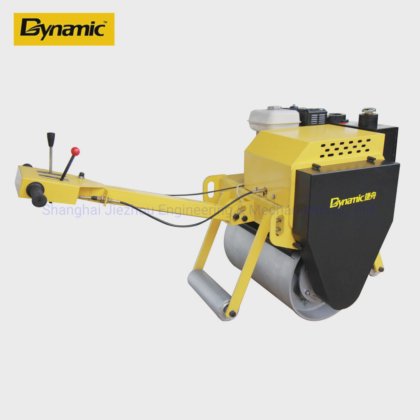

Dynamic Single Drum (DRL-70) Walk-Behind Vibratory Roller in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Object
- Cement Concrete Pavement
- Moving type
- Semi-Fixed
- Mixing method
- Intermittent Compulsory
- Automatic grade
- Semi-Automatic
- Product capacity
- 40～400t/h
- Certification
- ISO9001: 2000, CE
- Weight
- 520 Kg
- Dimension
- L2450*W820*H1100 mm
- Working diameter
- 75 Rpm
- Engine type
- Air-Cooled, 4-Cycle, Gasoline
- Name
- Walk Behind Roller
- Centrifugal force
- 20 Kn
- Engine
- Honda Gx270
- Transport package
- Plywood Box
- Specification
- L2450*W820*H1100 mm
- Production capacity
- 500piece Per Month
- Category
- Compactors in China
- Subcategory
- Paving machinery
- Subcategory 2
- Manufacturing & processing machinery
- Subcategory 3
- Engineering & construction machinery
- Listing ID
- 86279482
Description
Product Overview
Dynamic Road Roller Series
Dynamic Road Roller Series applied to mending and maintaining various roads, expressway. Especially suited for compaction of narrow areas.
Model
DDR-60
DRL-70
RRL-100
Weight
kg
520
520
1000
Dimension
mm
L2450*W780*H1050
L2450*W820*H1100
L2100*W850*H1950
Engine Type
Air-cooled, 4-cycle, Gasoline
Air-cooled, 4-cycle, Gasoline
Air-cooled, 4-cycle, Gasoline
Type
Honda GX270
Honda GX270
CF186F
Centrifugal force
kn
20
20
20
Working diameter
rpm(hz)
75
75
60
Product Description
Infinitely variable speed control
Sprinkler system
(Two)scrapers per drum
Automatic shutdown at low oil level
Company Profile
