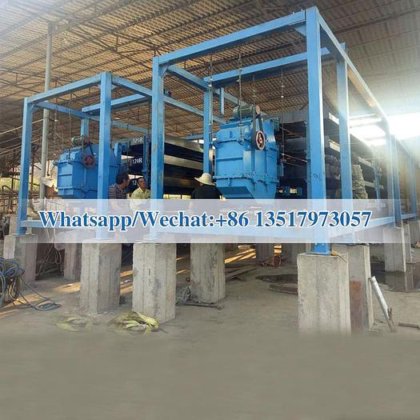

multilayer 4 layer shaking table mining machine in Ganzhou, Jiangxi, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Serial number
- 4LYG/3LGY
- Stock number
- 5
- Applicable industries
- Energy & Mining
- Production capacity
- 90%
- Place of origin
- Jiangxi, China
- Voltage
- 380V
- Dimension(l*w*h)
- 6330*2450*2660mm
- Weight
- 2800kg
- Application
- Gravity separator
- Feeding size
- 0-2mm
- Capacity
- 2-8t/h
- Deck material
- Fiberglass
- Flowchart design
- professional engineer design for your
- Beneficiation area
- 7.6 sqm per layer
- Deck type
- Coarse ore Deck, Fine sand Deck, Slime Deck
- Local service location
- Egypt, Indonesia, Mexico, Malaysia, Australia, Morocco
- Certification
- ISO9001:2008
- Power
- 1.5kw
- Category
- Mineral Processing in China
- Subcategory
- Mining machinery
- Subcategory 2
- Mineral separator
- Subcategory 3
- Energy & mineral equipment
- Listing ID
- 86547515
Description

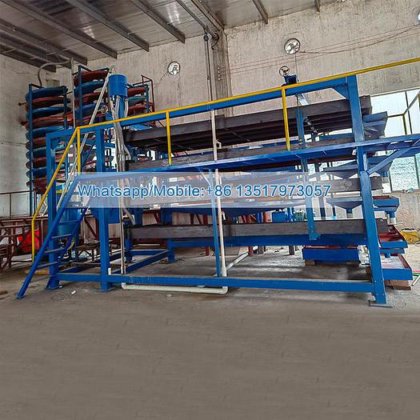

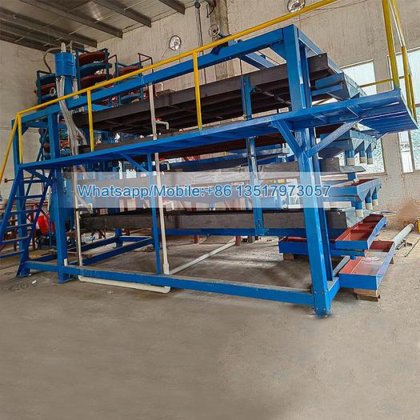

Multideck Lift Type Shaking Table
Shaking Table which is also called table concentrator, it's effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The range of effective separating particle size of shaking table is 2 to 0.022 mm.
Advantages and Characteristics
Ingenious structure of inertial gearing, self balanced vertical force component. No vertical jump because no vertical vibrating force. It can be installed on the building floor, or on the bracket
Lift type, minimal consumption of friction, reduce vibration and energy-saving, non-required bulky base, quick and flexible installation
It adopts fiberglass deck with wear-resistant layer, wear-resistant, waterproof, anti-dry, anticorrosion, non-deformed, less maintenance, long service life
The deck installed in an uniform frame Layer-by-layer, easy to install and unload, increase processing capacity per unit area. Replace different weight blocks can change the stroke of shaking table
It adopts variable-frequence governor, easily change frequency of stroke to adapt different material with different particle size and feature
Main Technical Parameters
Model 3LYG 4LYG
Deck type Coarse ore Deck Fine sand
Deck Slime Deck Coarse ore Deck Fine sand
Deck Slime Deck
Beneficiation area (m2) 7.6 X 3 7.6 X 3 7.6 X 3 7.6 X 4 7.6 X 4 7.6 X 4
Deck Size Length
(mm) 4500 4500 4500 4500 4500 4500
Transmission end width
(mm) 1850 1850 1850 1850 1850 1850
Concentrate end width
(mm) 1550 1550 1550 1550 1550 1550
Maximum feeding size (mm) 2 0.5 0.074 2 0.5 0.074
Capacity (t/h) 4-5 2-3 1.5-2.5 5-6.5 3-5 2-3.5
Feeding density (%) 20-30 18-25 15-20 20-30 18-25 15-20
Stroke (mm) 8、10、12、15、18、20、22
Frequency of stroke (r/min) 270—360（variable-frequence）
Water consumption (t/h) 0.7-1 0.4-0.7 0.4-0.7 0.7-1 0.4-0.7 0.4-0.7
Groove shape of deck Available Rectangular, Saw-tooth, Triangle
Power (Kw) 1.5Kw Dimensions (mm) 6330×2450×2660
