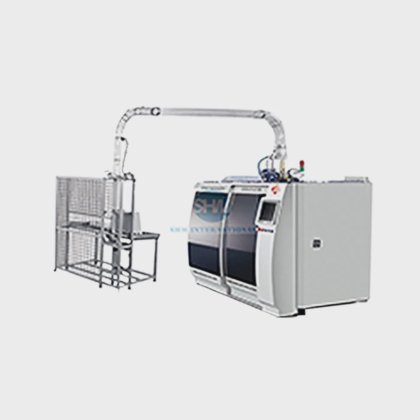

Automatic Paper Cup Making Machine with PLC and CCD Detection in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Applicable objects
- Food
- Speed
- 70-90PCS/Min
- Required paper
- Single and Double Side PE Coated Paper
- Automation
- Automatic
- Certification
- CE
- Customized
- Customized
- After-sales service
- After-Sales Service Available
- Paper cups mouth diameter
- Ø70-100mm
- Paper cups bottom diameter
- Ø40-75mm
- Paper cups height
- 50-135mm
- Power
- 380V 18kw
- Transport package
- Wooden Case
- Specification
- 4000kg
- Category
- Paper Cup Machines in China
- Subcategory
- Paper machinery
- Subcategory 2
- Manufacturing & processing machinery
- Listing ID
- 86580153
Description
Product Description
1. Use the double turn plate, double order to forming paper cup. The 600S type machine is an upgrade product that base on single turn plate paper cup machine. The machine adopts open-type, interrupted division design, gear drive, longitudinal axis design. So they can reasonably distribute each part function.
2. The whole machine adopts Spray lubrication, thus reduce the parts abrade, and it adopts Switzerland leister heater for cup body and bottom paper sealing; and silicon oil flow controlled by PLC & electromagnetic valve, in total two course for top curling forming, first course rotate top curling, and second that heating and forming, thus the cup forming will be more perfectly.
3. PLC system controls the whole cup forming process. By adopting photoelectric failure-detecting system and servo control feeding, our paper cup machine's reliable performance is guaranteed, thus offering a rapid and stable operation.
