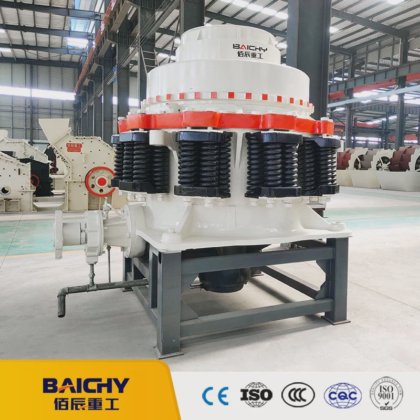

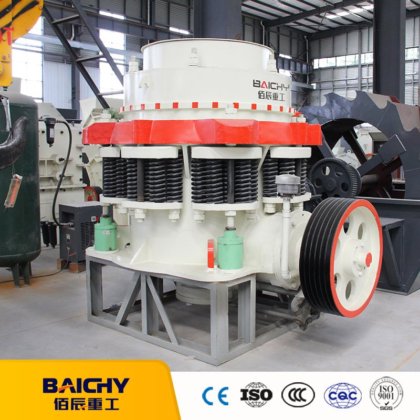

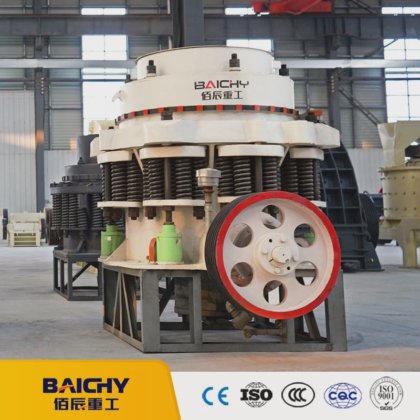

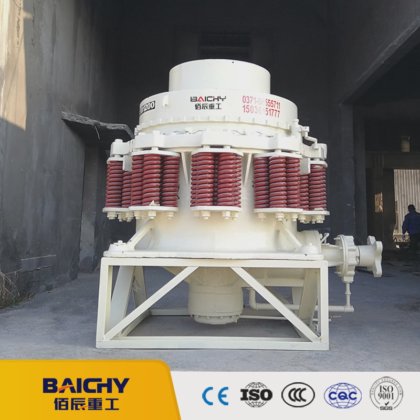

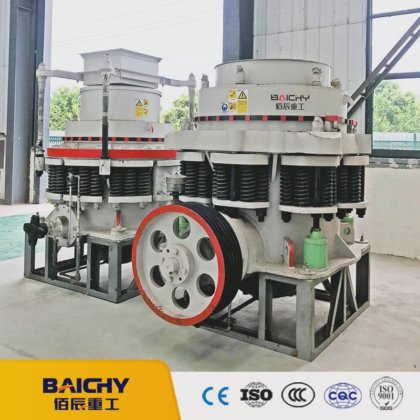

Mining Granite Hard Stone Crusher Machine, Iron Ore Hydraulic Cone Crusher Machine, Hydraulic Single Cylinder CS Cone Crusher in Henan, China

Features
1. Easy maintenance and easy operation. The lamination crushing process makes the final material have a good particle shape.
2. The hydraulic overload protection device helps to remove iron and reduce downtime. The thin oil lubrication station is equipped with a cooling system for better cooling performance.
3. The standard or short head crushing chamber can be replaced by different sleeves and bowl liners to better meet the needs of users.
4. Heavy-duty design and use of high-quality components with optimized wear parts reduce operating costs.
Applied Material
Symons cone crusher is widely used in the metallurgical industry, building materials industry, road construction industry, chemical industry, and silicate industry.
It is suitable for crushing ores and rocks with medium hardness and above.
It has the characteristics of strong crushing force, reliable structure, high efficiency, large output, low operating cost, convenient adjustment, and economical use.
Application:
iron ore, granite, limestone, quartzite, sandstone, cobblestone and etc. CS Symons cone crusher is applied to cement mills, mining, building construction, road & bridge construction, railway construction and metallurgy, and some other industries. Materials like iron ore, granite, limestone, quartzite, sandstone, cobblestone, and some others are easily crushed by cone crusher.
Product Type
Symons cone crusher is used as a secondary crusher or fine crusher for occasions that do not require high particle size standards.
Since the Simmons cone crusher controls the particle size of the product by reducing the size of the discharge opening, it is not suitable for ultra-fine crushing and sand-making operations.
Baichy Machinery provides users with various types of cone crushers such as compound, single-cylinder, multi-cylinder, and full-hydraulic.
Complete specifications, affordable price, environmental protection, and energy saving. Our professional technical designers provide free design solutions and provide suitable solutions according to the customer's site and broken materials.
If you want to know more about the cone crusher equipment, please click the picture below for more details↓↓↓
Spring Cone Crusher
DG Cone Crusher
HP Cone Crusher
Working Principle
When Symons cone crusher works, the motor drives the eccentric sleeve rotating through the V-belt, the large pulley, the transmission shaft, the bevel gear, and the large bevel gear.
The conical shaft core rotates and moves by the driving of the eccentric sleeve, causing the surface of the broken wall to be close to or leave the surface of the rolling wall, therefore, the material is continuously crushed by the crushing and bending in the annular crushing cavity composed of the fixed cone and the moving cone.
After multiple extrusion impacts and bending, the material is crushed to the required particle size and discharged through the lower portion.
Product Parameters
Model
Moveable Cone Dia.
(mm)
Cavity Type
Feeder Opening Size
Adjusting Range of Discharge Opening(mm)
Main Shaft Speed
(r/min)
Motor Power (kw)
Capacity(t/h)
Overall Dimension L*W*H (mm)
Shutting Size(mm)
Opening Size(mm)
CS75B
900
Fine
83
102
9-22
580
75
45-91
2821×1880×2164
Coarse
159
175
13-38
59-163
CS110B
1200
Fine
127
131
9-31
485
110
63-188
2821×1974×2651
Medium
156
156
13-38
100-200
Coarse
178
191
19-51
141-308
CS160B
1295
Fine
109
137
13-31
485
160
109-181
2800×2342×2668
Medium
188
210
16-38
132-253
Coarse
216
241
19-51
172-349
CS220B
1650
Fine
188
209
16-38
485
220
181-327
3911×2870×3771
Medium
213
241
22-51
258-417
Coarse
241
268
25-64
299-635
CS315B
2134
Fine
253
278
19-38
435
315
381-726
4613×3251×4732
Medium
303
334
25-51
608-998
Coarse
334
369
31-64
789-1270
China Baichy is a company integrating industry and trade. We have exclusive mechanical R&D personnel who can optimize and improve the machinery according to customer requirements and feedback.
We have exported to more than 150 countries, with milling, ore dressing, gold dressing, and large-scale crushing production line equipment.
We can provide the best and most economical solutions according to customers' requirements on stone specifications, output, application, etc.
We have the best one-stop service, providing local customers with equipment installation, commissioning, and after-sales service.
If you have any questions, you can contact us anytime! We can give you the most satisfactory answer about the stone you need to be crushed and the output size!
Company Profile
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standardized workshops. There are more than 200 sets of various large and medium-sized metal processing lathes, riveting machines, welding equipment, and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focused on 4 series of products: stone crusher machines, sand-making equipment, powder grinding mills, mineral processing equipment, and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
Through the international mining machinery exhibitions, We have demonstrated our professional equipment, technology, and thoughtful service to customers from all over the world.
Baichy always adheres to the "quality assurance, sustainable development" of the enterprise purpose and "customer first, mutual benefit and win-win" as the business principle.
FAQ
1. Are you a manufacturing or trading company?
We are a factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already built many mining projects in China & Overseas.
