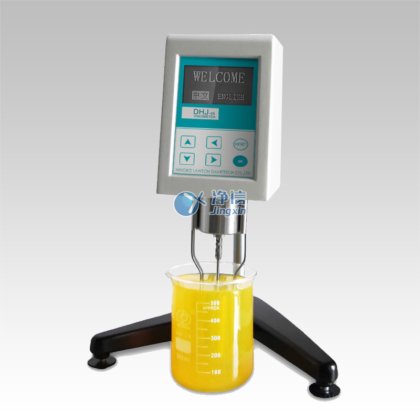

rotational viscometer in Shanghai, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Specification
- classifier for heavy objects, such as machines, TVs, computers; theater performances
- Product description
- NDJ-5S digital viscometer using microcomputer technology, can easily set the range (rotor number and speed), digital processing of the data detected by the sensor, and in the display clearly shows the measurement of the set rotor number, speed, the viscosity of the measured liquid and its full-scale percentage of the value and so on.
- Summarize
- NDJ-5S digital display viscometer is the upgraded product of our company's rotational viscometer. This instrument adopts advanced mechanical design technology, manufacturing process and microcomputer control technology, data acquisition is correct; the display selects blue backlight, high brightness LCD display, data display is clear.
- Main parameters
- Parameter Range
- Measuring range
- 1 ~1×105mPa.s
- Rotor specifications
- No. 1-4 rotor Optional No. 0 rotor can measure low viscosity up to 0.1mPa.s.
- Rotor speed
- 6, 12, 30, 60 rpm
- Automatic gearbox
- Automatic selection of the appropriate rotor number and speed
- Operator interface selection
- Chinese/English
- Reading stabilization cursor
- Vertical bars and squares show nearly stable readings when the cursor is full.
- Measurement accuracy
- ±2% (Newtonian liquid)
- Power supply
- AC 220V±10% 50Hz±10%
- Working environment
- Temperature 5OC~35OC, Relative humidity not more than 80%
- Dimensions
- 370×325×280mm
- Net weight
- 6.8㎏
- Subcategory
- General research instruments
- Subcategory 2
- Snowflake ice maker / viscometer / freeze dryer
- Listing ID
- 86981645
Description
NDJ-5S digital viscometer using microcomputer technology, can easily set the range (rotor number and speed), digital processing of the data detected by the sensor, and in the display clearly shows the measurement of the set rotor number, rotational speed, the viscosity of the measured liquid and its full-scale percentage of the value and so on.
NDJ-5S digital display viscometer main features:
This instrument has the characteristics of high measurement sensitivity, reliable test results, easy to use and operate, beautiful and generous modeling, etc. It is used to measure the absolute viscosity of Newtonian liquids and non-Newtonian liquids apparent viscosity of the instrument, which can be widely used in the measurement of viscosity of a variety of objects such as fats and oils, paints, plastics, medicines, ornaments, coatings, detergents and so on.
Technical parameters:
