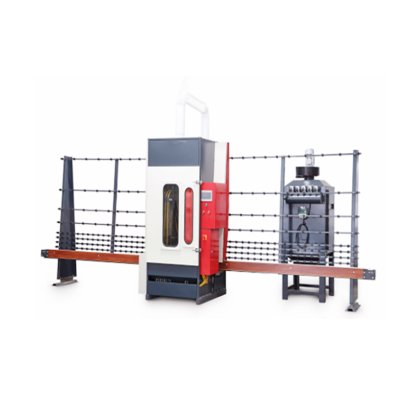

LIJIANG Glass Automatic Vertical Glass Sandblasting Machine in Jinan, Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Air output
- over 3 lm³/min
- Shell
- Made of welded 3.0mm impermeable steel plate
- Illumination
- 18w fluorescent lamp light 2 pieces
- Processing efficiency
- 20~30㎡/h
- Conveyor rail length
- 4800mm
- Dust removal box
- Adopt pulse dust removal and air flow control
- Equipment dimensions
- Max size 6800*1500*3300mm
- Maximum processing size
- 2500~2800mm
- Air pressure
- 3~7bar（kg/c㎡）
- Voltage
- 380V 50Hz
- Power
- 3.5Kw
- Subcategory
- Glass sandblasting machine
- Subcategory 2
- Automatic glass processing machine
- Subcategory 3
- Glass edge grinding and polishing machine
- Listing ID
- 88599799
Description
LIJIANG Glass LJPS-1600 / LJPS-2000/ LJPS-2500 Automatic Vertical Glass Sandblasting Machine sucks the sandblasting medium from the sandblasting material box through compressed air, and then sprays it out through the sandblasting gun. When compressed air flows through the sandblasting gun, the air flow speed is accelerated by the shrinkage and expansion of the nozzle, forming a high-speed airflow. Under the action of air flow, the sandblasting medium is accelerated and ejected, impacting the surface of the workpiece for grinding and removing surface dirt. The sandblasting material box and sandblasting pipeline system of the sandblasting machine need to ensure the smoothness and stability of the sandblasting medium to ensure the sandblasting effect.
