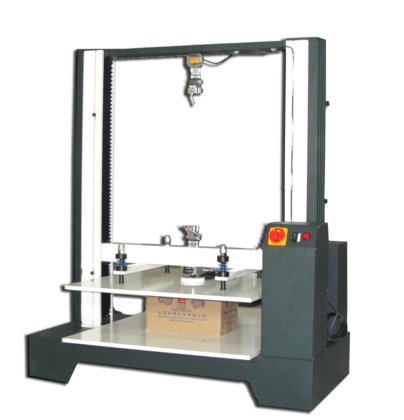

Compression Testing Machine / Computer Servo Container Compression Tester For Box And Carton Testing in Dongguan, Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Capacity
- 2000kg、5000kg、10000kg, Choose One
- Software
- Special Testing Software On Windows
- Force accuracy
- Better Than ±0.5%
- Force resolution
- 1/100,000
- Effective measuring range
- 0.5~100%F.S
- Extension accuracy
- Better than ±0.5%
- Testing speed
- 0.5～200mm/min，Adjustable
- Stop functions
- Automatic stop functions such as: Overload protection, limits of security, emergency shutdown button, programmable force and elongation setting, auto stop upon sample breaks …etc.
- Special functions
- Can be used for Constant pressing testing
- Optional device
- business computer:1 set, color printer: 1set
- Motor
- AC Servo Motor
- Power
- 1PH, 220V, 50/60HZ，15A
- Highlight
- Compression Tester For Box, Computer Servo Container Compression Tester, Carton Compression Testing Machine
- Packaging details
- WOODEN CASE
- Payment terms
- T/T, Western Union, L/C
- Supply ability
- 100
- Category
- Materials Testing in China
- Subcategory
- Compression testing machine
- Listing ID
- 88880433
Description
It is an ideal testing & research equipment for all factories, technical supervision departments, commodity inspection agencies, scientific research institutes and college and academy.
1.The configuration is made of the aluminum extrusion which is coated by baking paint and the inner setting include non-gap ball screws and oriented poles with high precision, low resistance; the load efficiency and structural rigidity have been improved a lot.
2.Panasonic digital control system using high-frequency response of the exchange server control ac servo motor in order to ensure the transmission system to be high efficiency, steady transmission, low noise, The speed can be controlled in the accuracy of 0.2 percent;

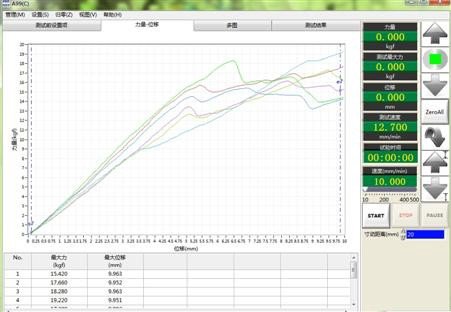

3.Micro-computer system using business computer as the main control machine with the special testing software of our company, setting of testing parameter, controlling of working state, collecting data & analysis, displaying of the result & print output can all be accomplished;
